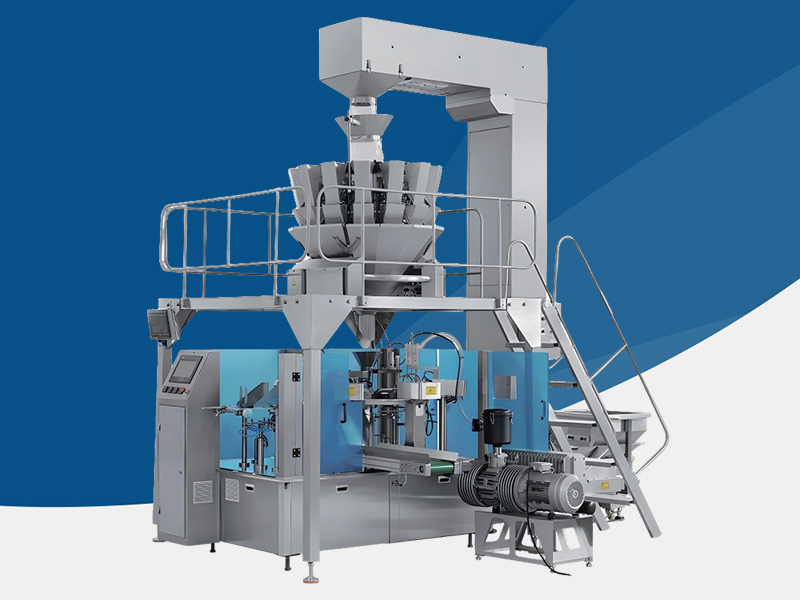

Granule Pre-made Pouch Packaging Machine

Good heat dissipation performance, extending the lifespan of the motor

Keywords: Keywords:GL-160M1-16,Motors

Keywords:

Category:

Bag Packaging Machine

Bagged powder

E-mail

Message

Details

APPLICATION

WORKFLOW

PROCESS FLOW

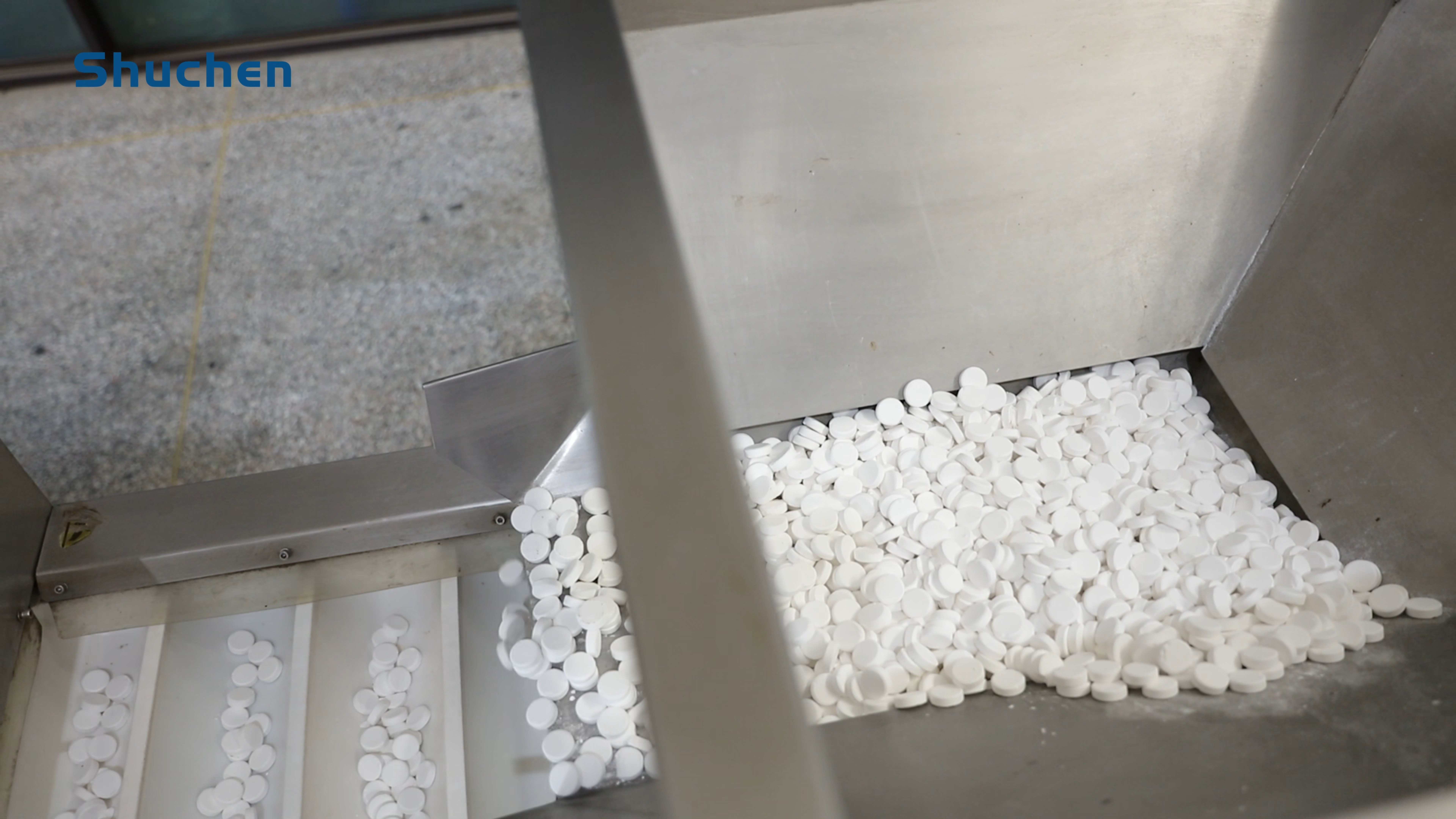

Suitable for granular materials used in food, pharmaceutical, and chemical industries, such as peanuts and nuts, cold medicine granules, table salt, sugar sticks, chicken essence, monosodium glutamate, white sugar, seeds, coffee beans, and various grains.

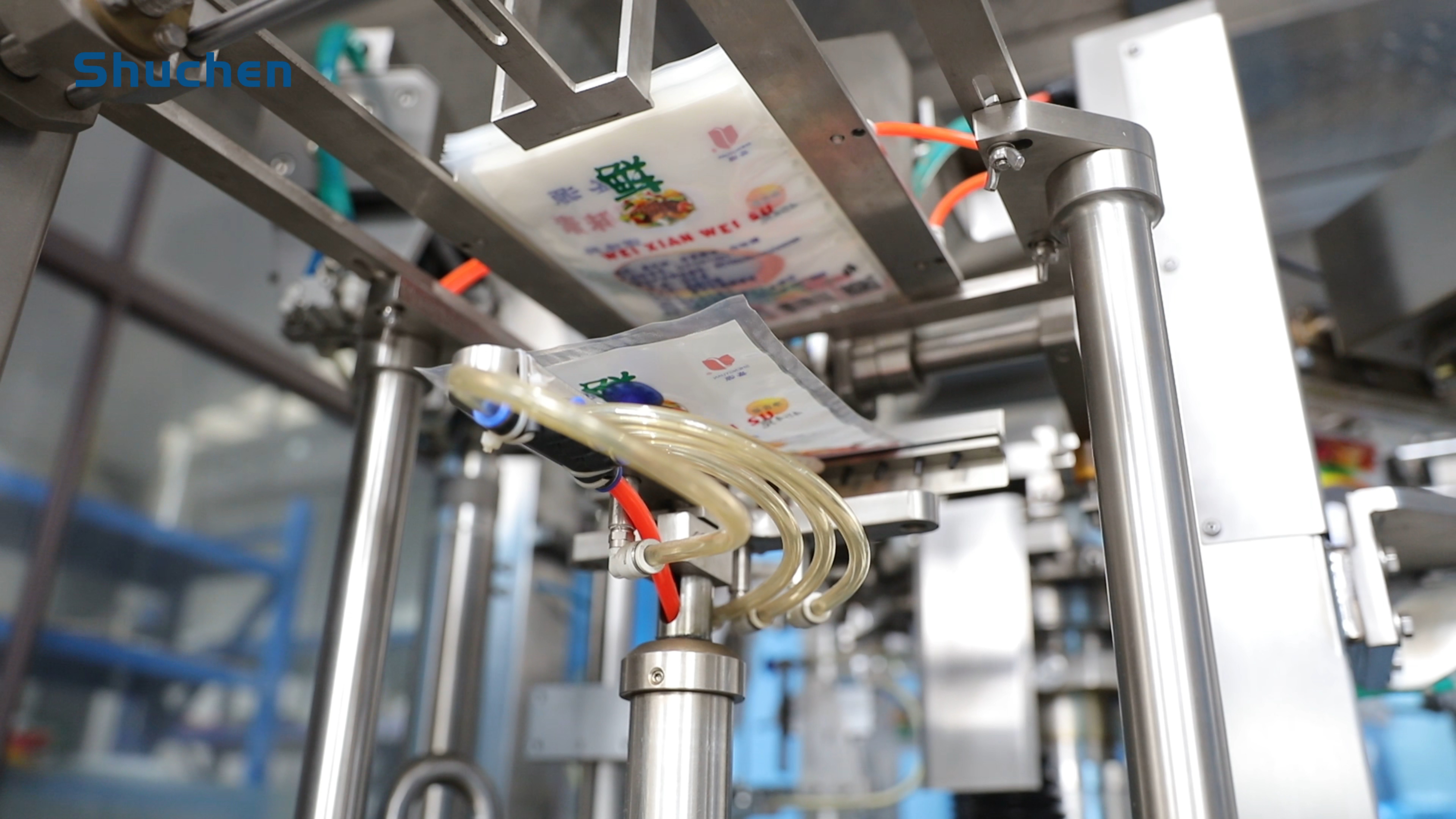

This machine is equipped with an advanced microcomputer controller, making operation simple and convenient. It is equipped with an internationally renowned brand control system, capable of automatically completing bag forming, metering, filling, gas injection, sealing, cutting, counting, and coding. It can also be customized with perforation holes according to customer requirements. The intelligent photoelectric control device ensures the integrity of the packaging bag pattern. The bag pulling mechanism is controlled by a stepper motor and color mark positioning, ensuring stable performance, convenient adjustment, and accurate detection. The machine offers two packaging forms for customers to choose from: back sealing and three-side sealing. The cutting blade can be selected from three types: flat blade, serrated blade, or dotted line blade. The metering method uses a volumetric cup made of stainless steel, with an adjustable capacity for easy regulation and accurate measurement. The advanced design ensures that the machine is suitable for various industries, with convenient adjustment, operation, and maintenance. It can be used in conjunction with various automatic metering equipment from both domestic and international sources.

TECHNICAL PARAMETERS

Model	HL8D-250K
Types of packaging bags	Self-supporting bags,handbags,zipperbags,four-sided bags,three-sided bags,paper bags andothercomposite bags
Packing bagsize	w:50-250mm L:80-350mm
Filing area	10-1500g
Packagingspeed	45-60 bales/min(thespeedis determinedby theproduct itselfand the filing weight)
Packaging accuracy	Averageaccuracy≤±1%
Totalpower	3.5Kw
Scope ofapplication	Frozen,monosodium glutamate,melon seeds,jujube,chafingdishseasoning,seeds,pufed food andotherbulk materials,strip,sphericaand irreqularshape of solid materials.

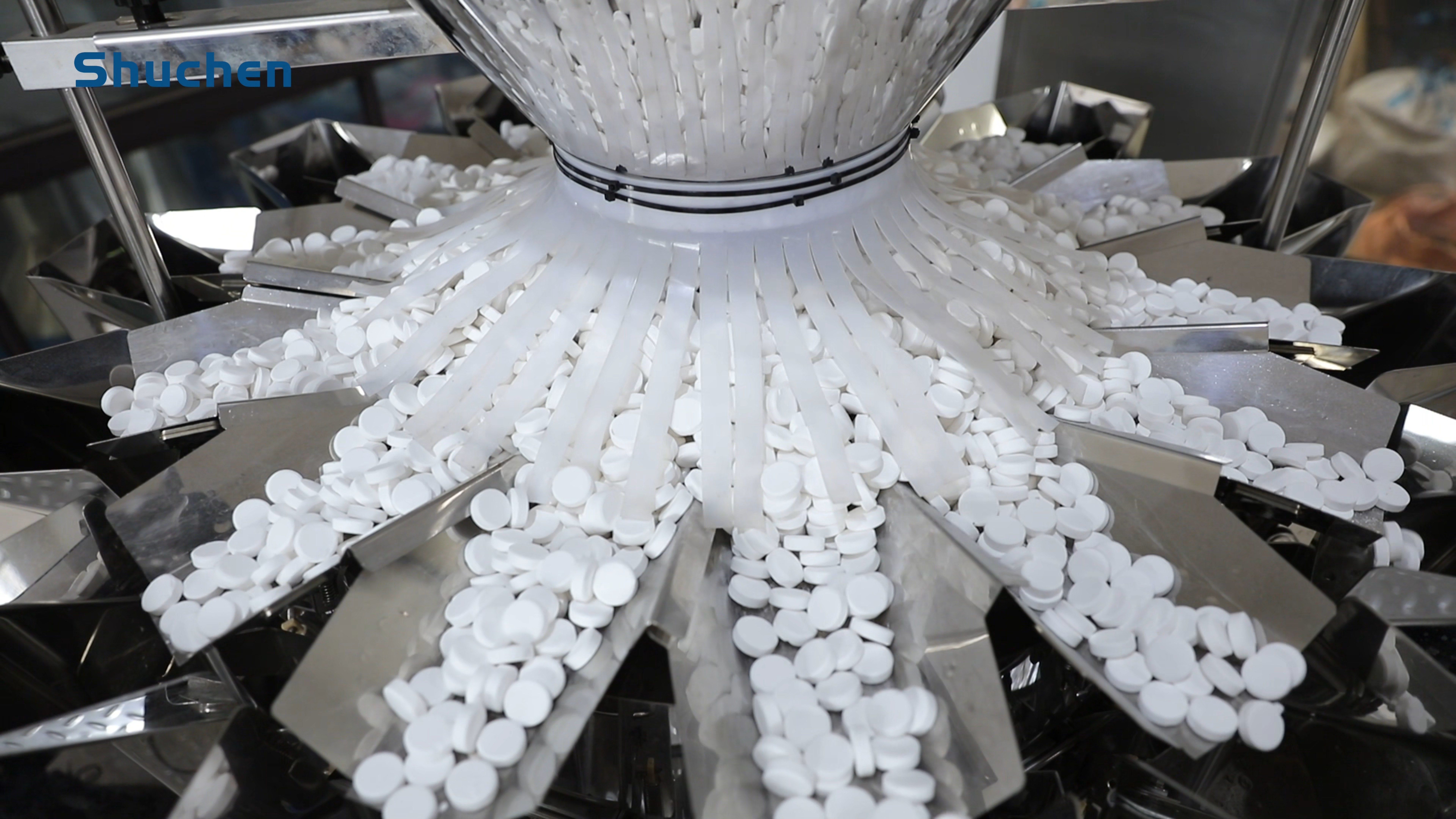

Metering equipment	Computer Combination Scale,MaterialConveyor,WorkPlatform

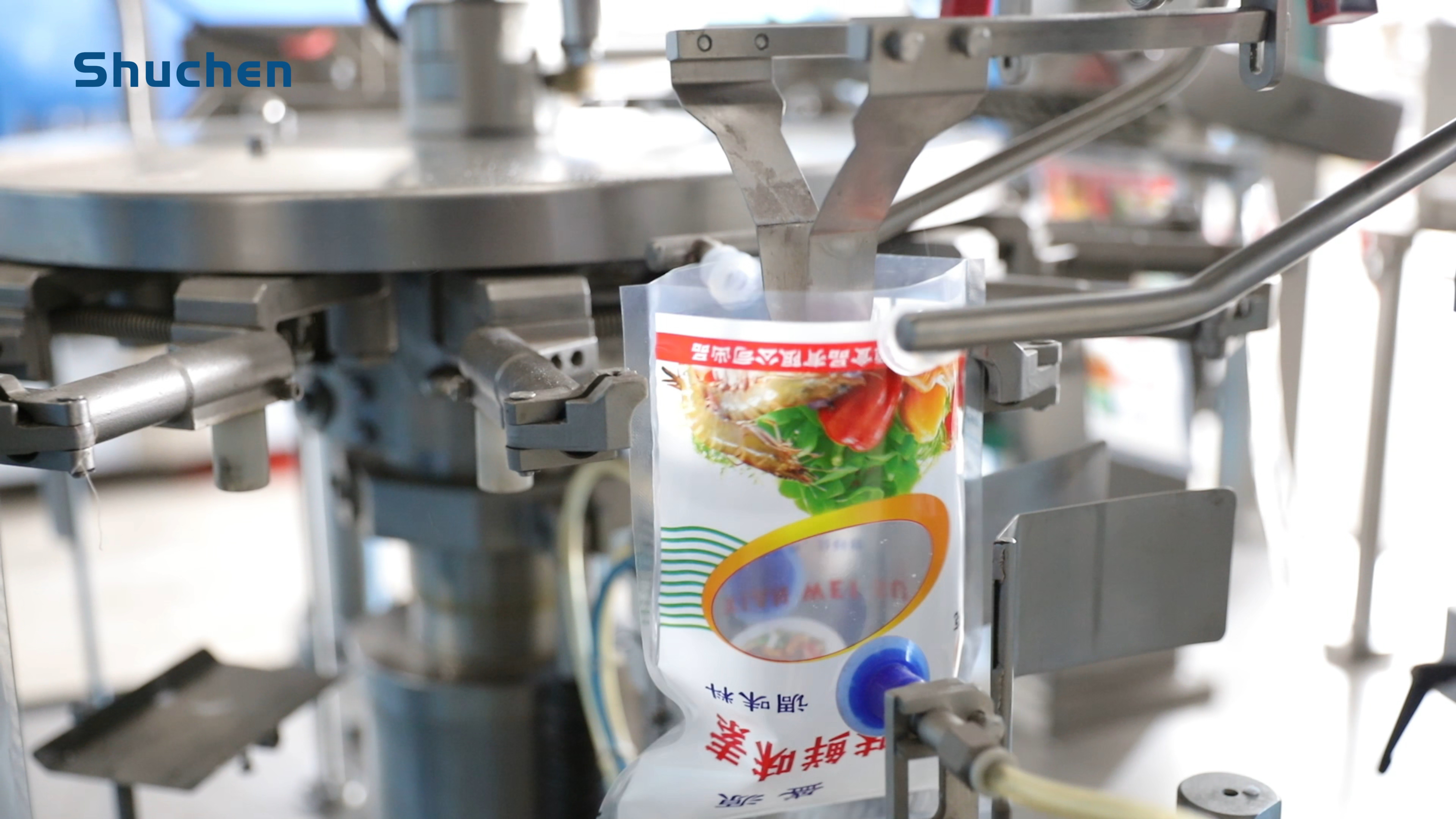

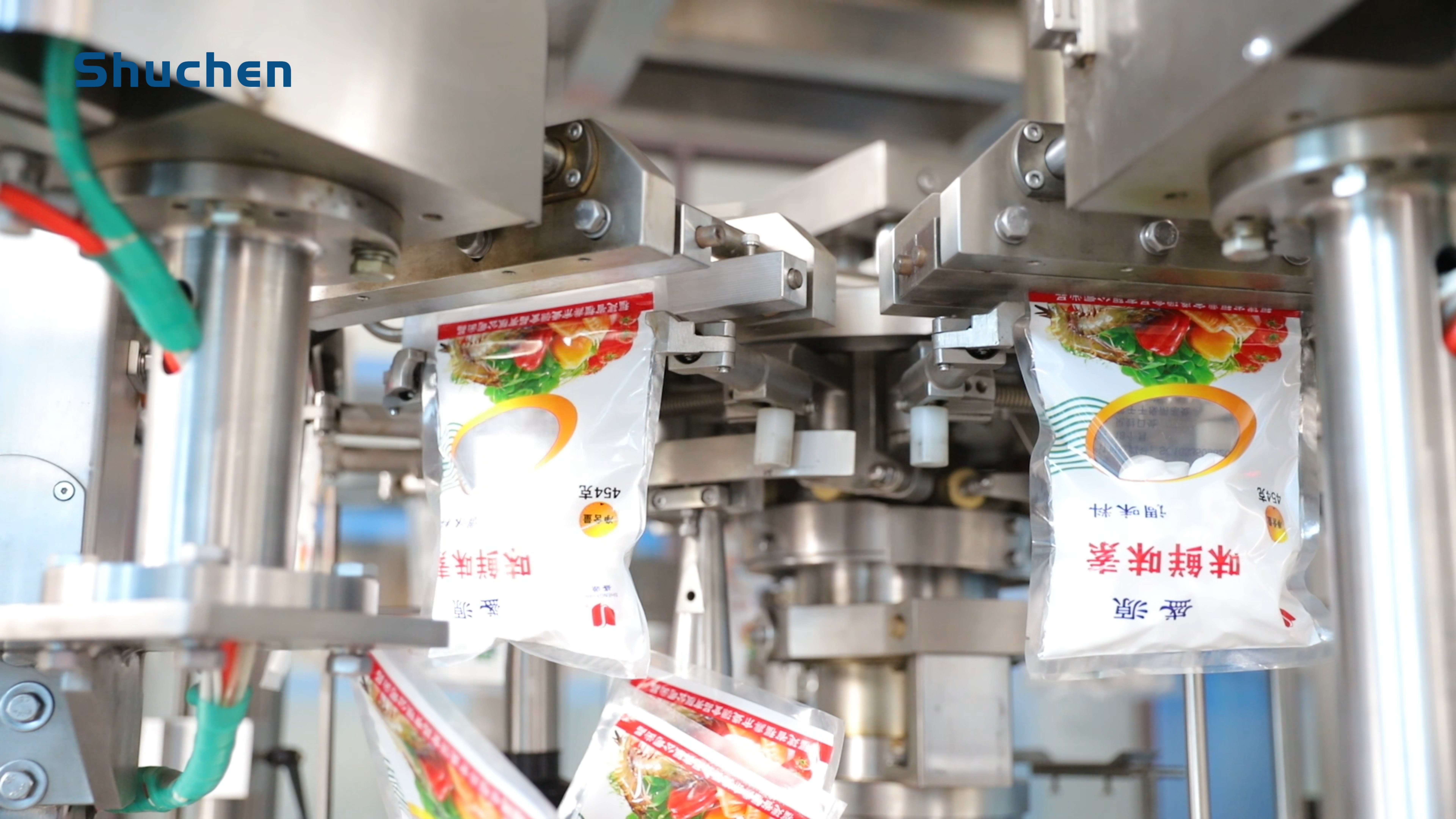

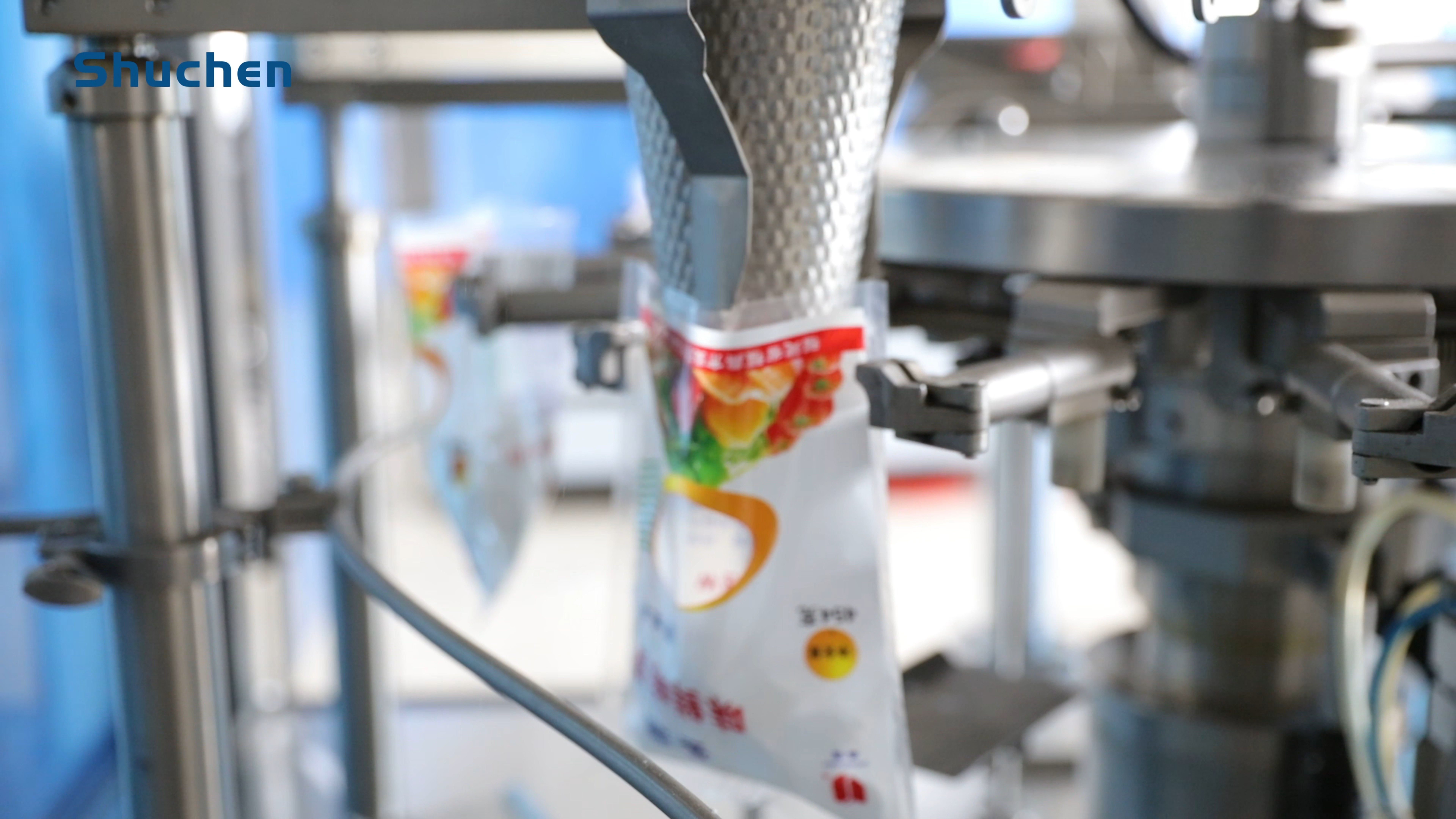

Workflow	Eight jobs:1.Bagging 2.Printing production date 3.Opening 4.Blanking 5.Blanking 6.Kneading orvibration 7.Heat sealing 8.Shaping and output
