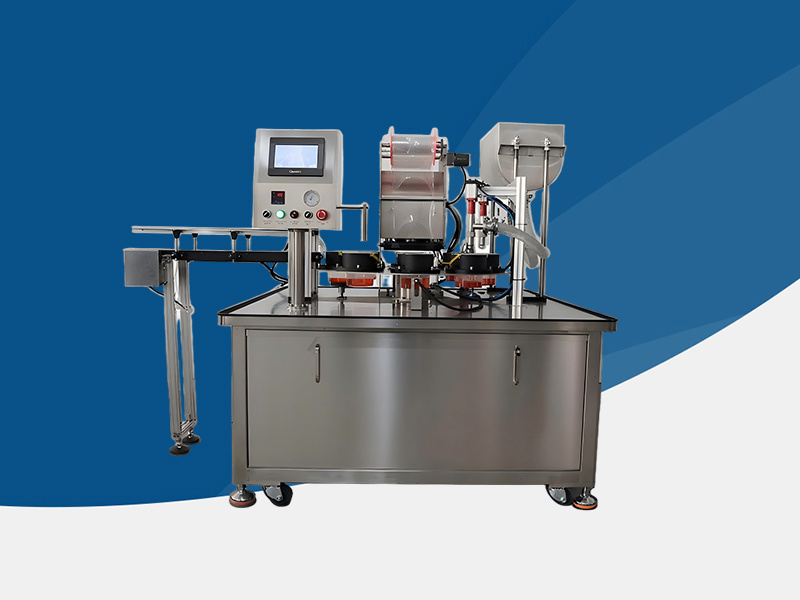

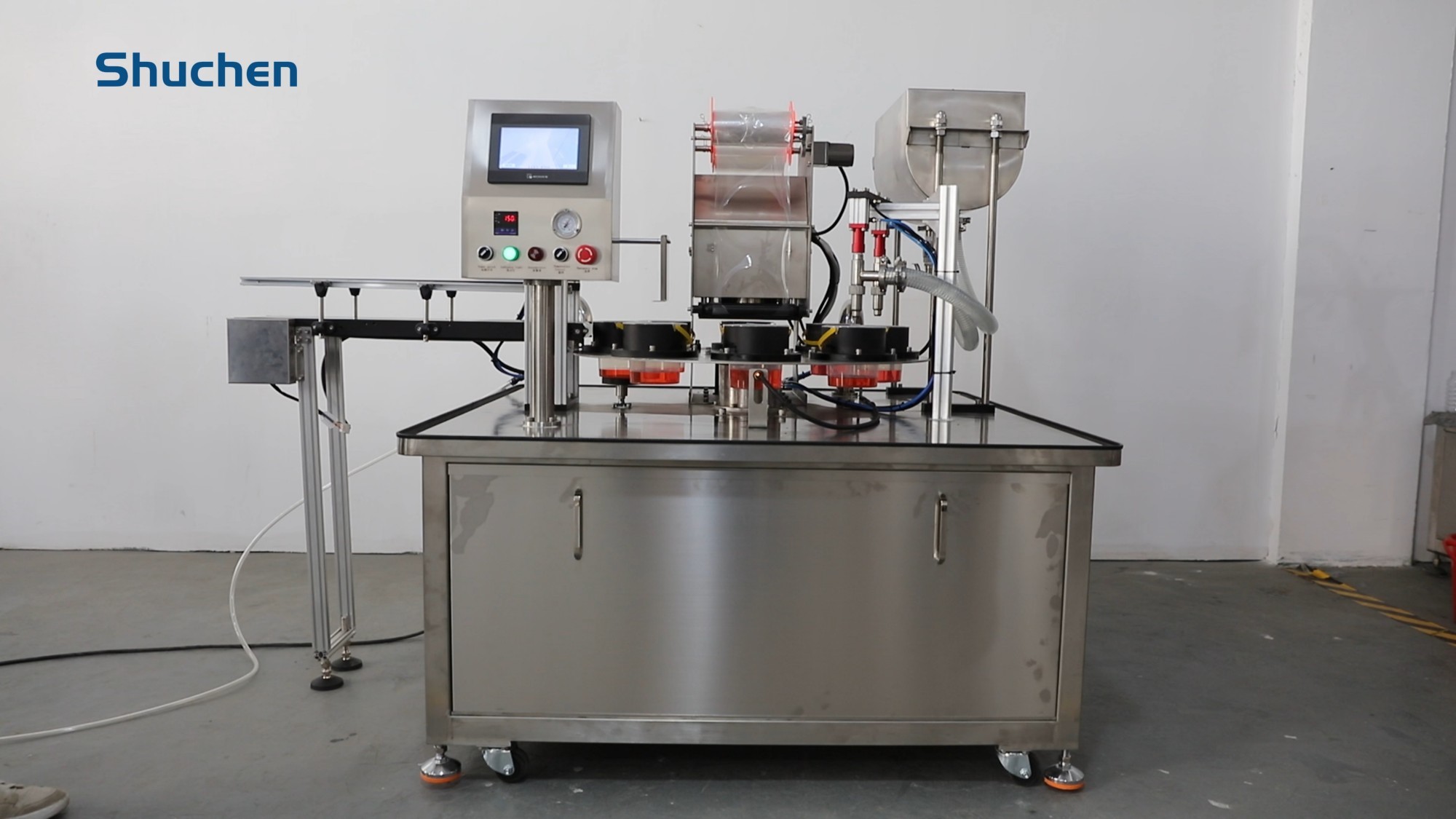

Ap Series Rotary Filling and Sealing Machine for Roll Film (Water Bucket)

Good heat dissipation performance, extending the lifespan of the motor

Keywords: Keywords:GL-160M1-16,Motors

Keywords:

Category:

Sealing Machinery

Bucket

E-mail

Message

Details

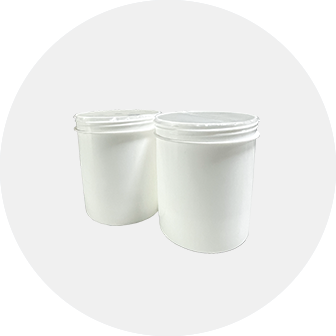

APPLICATION

WORKFLOW

PROCESS FLOW

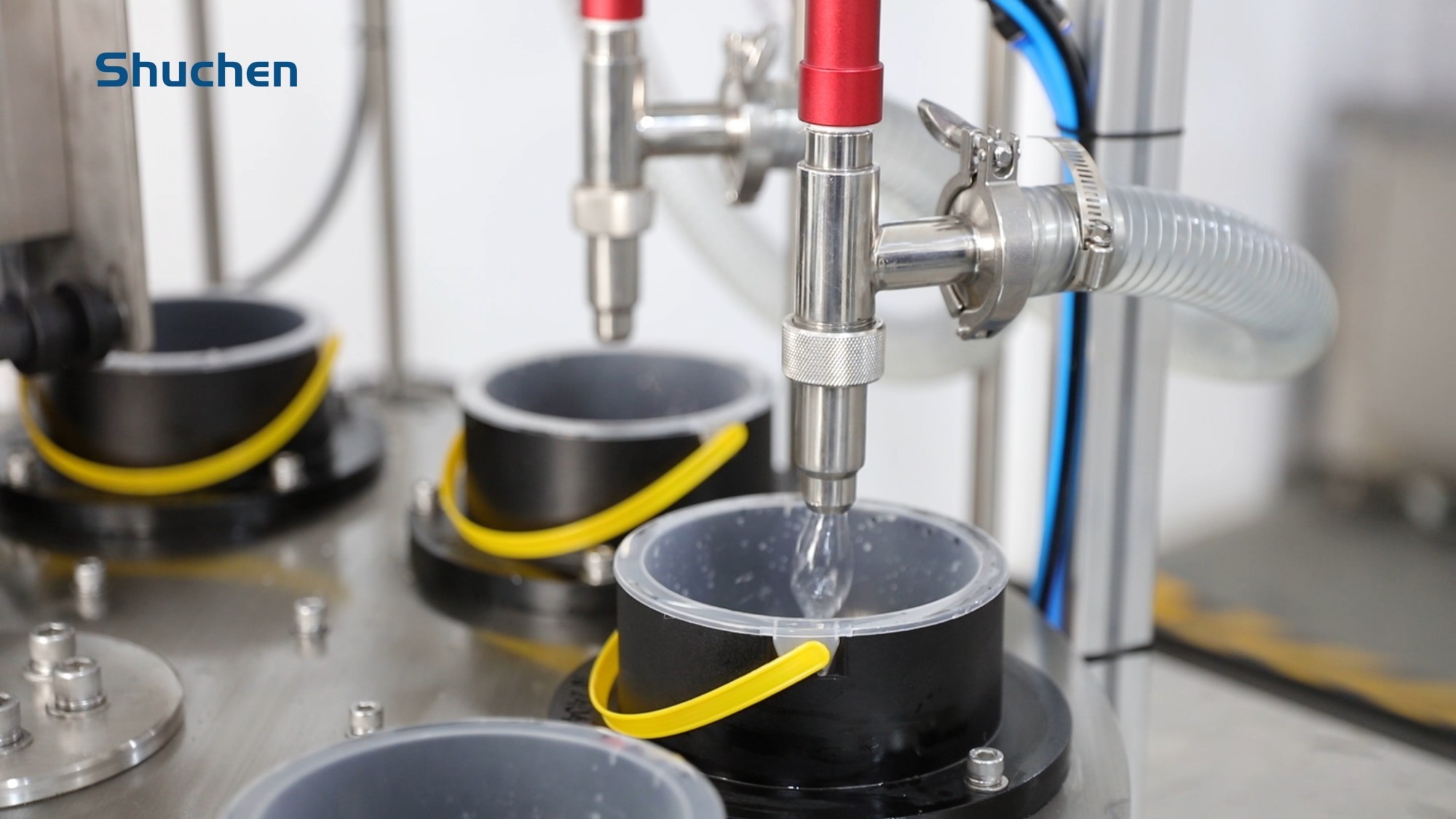

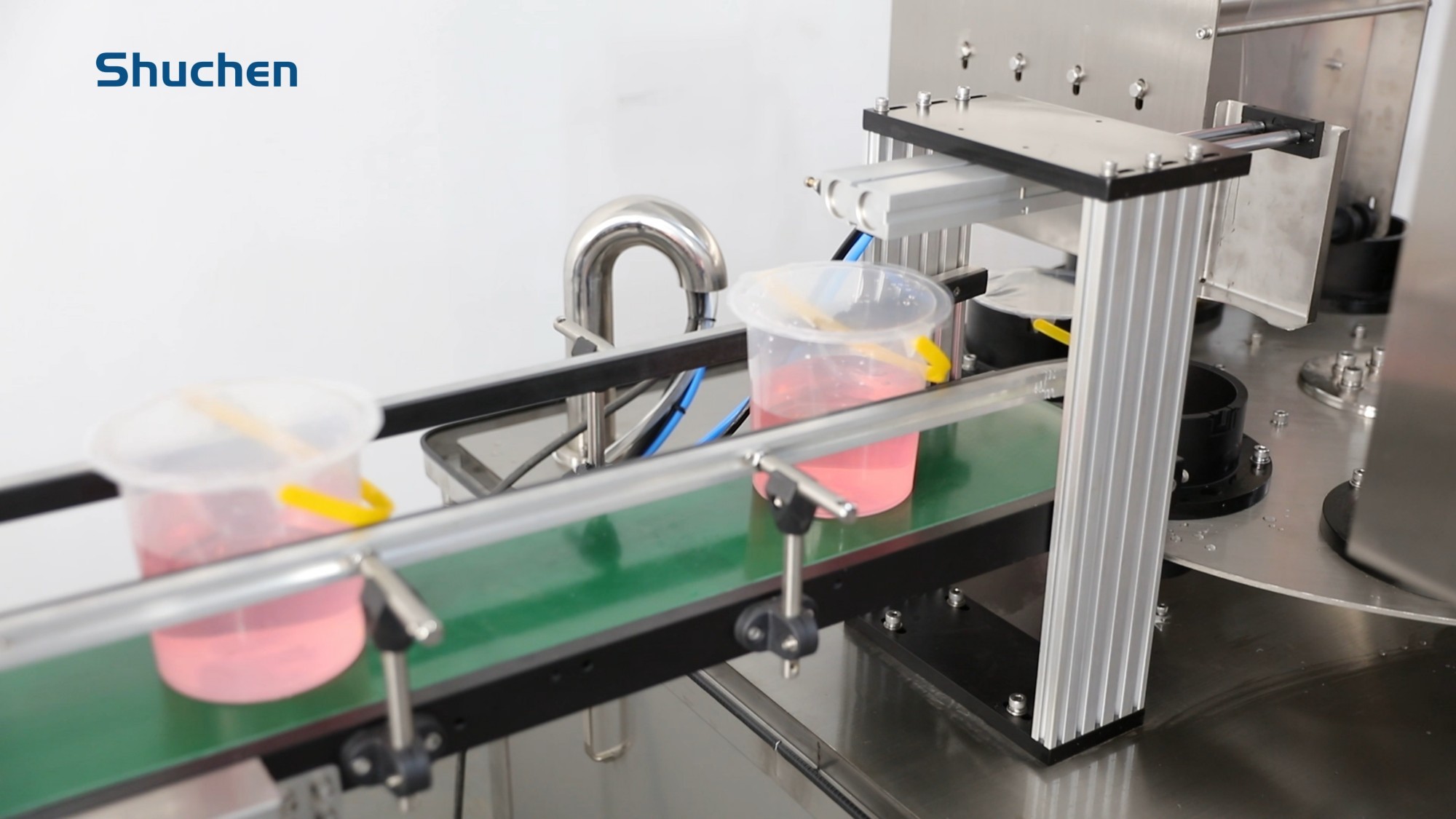

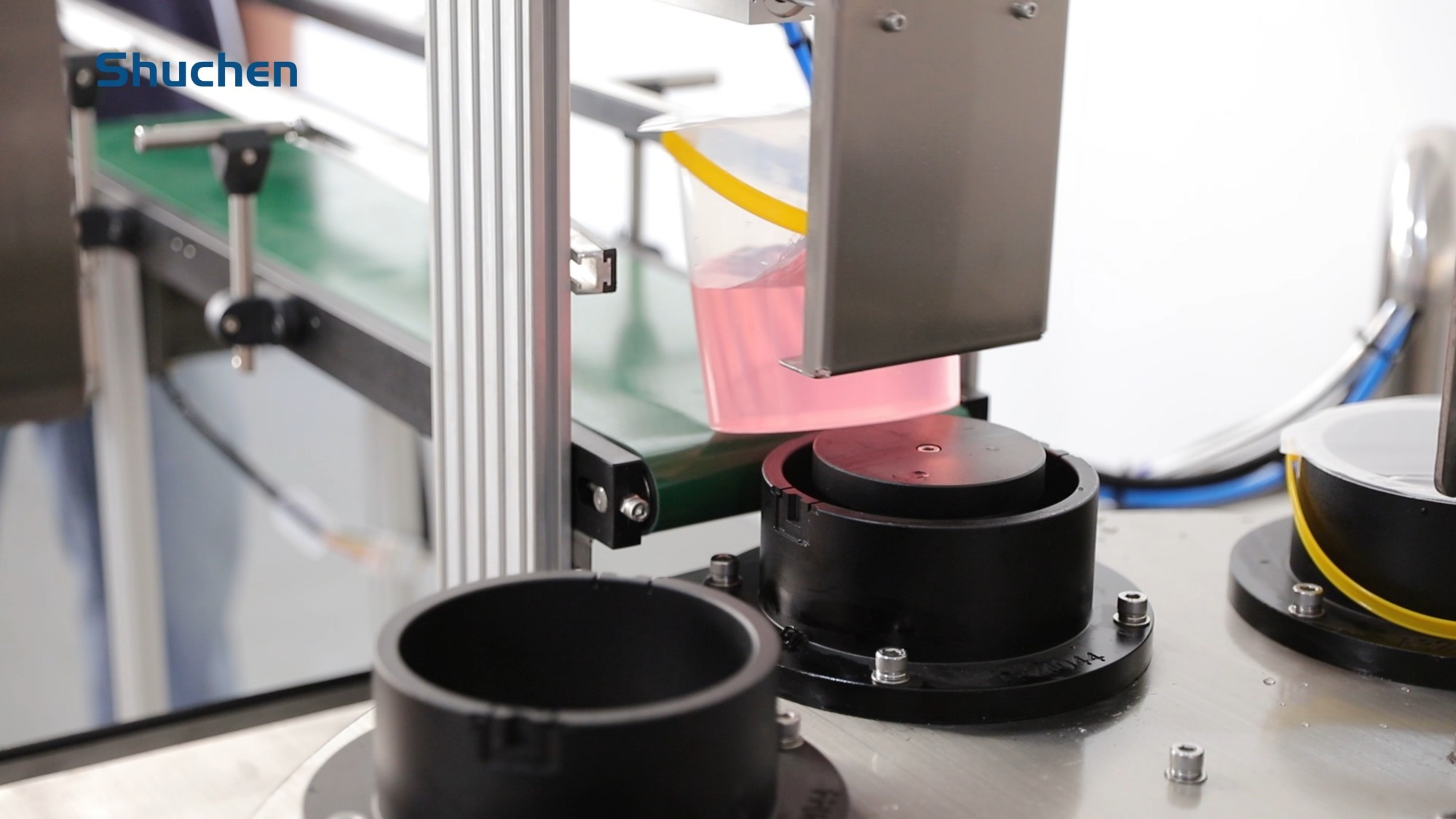

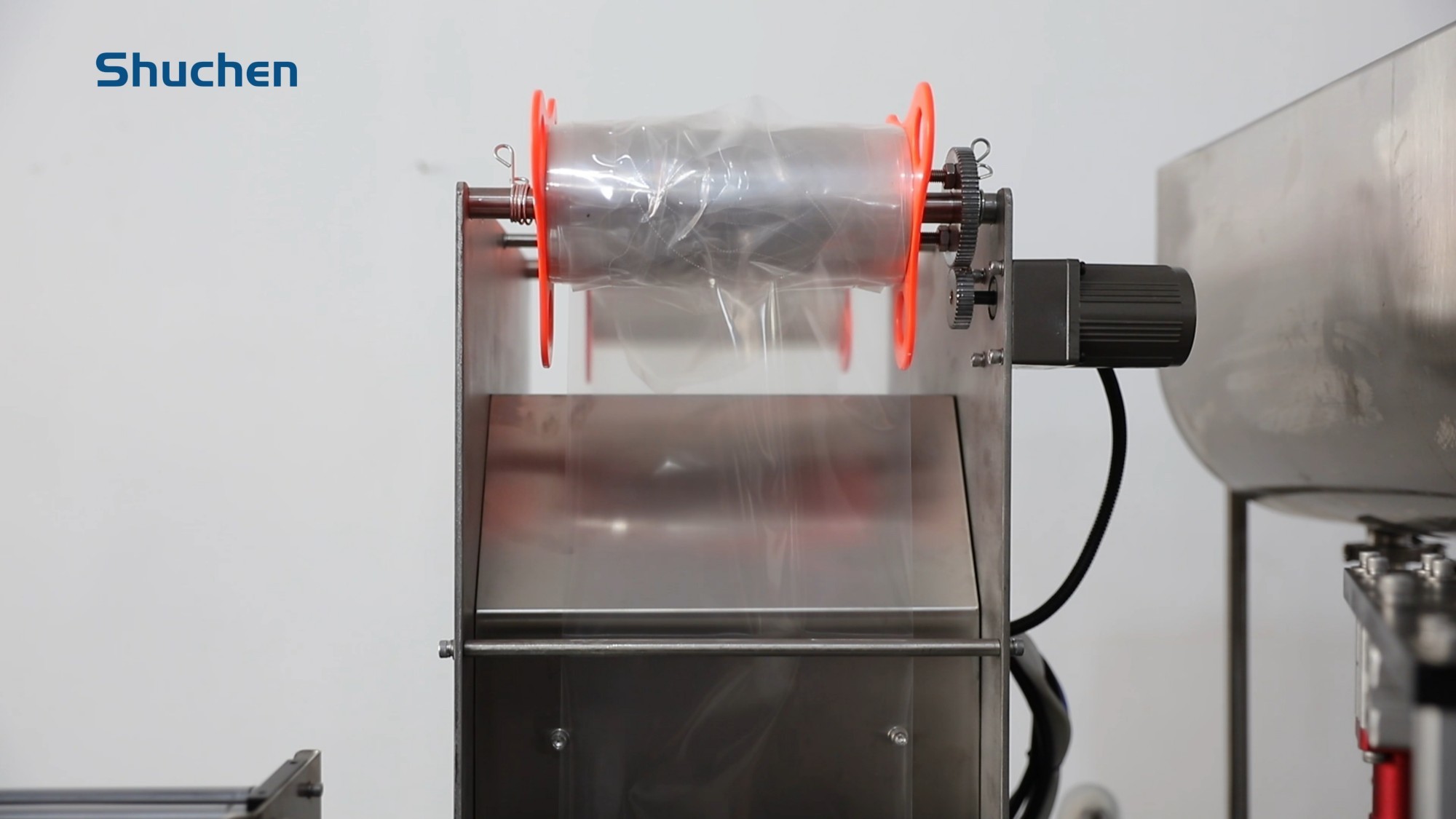

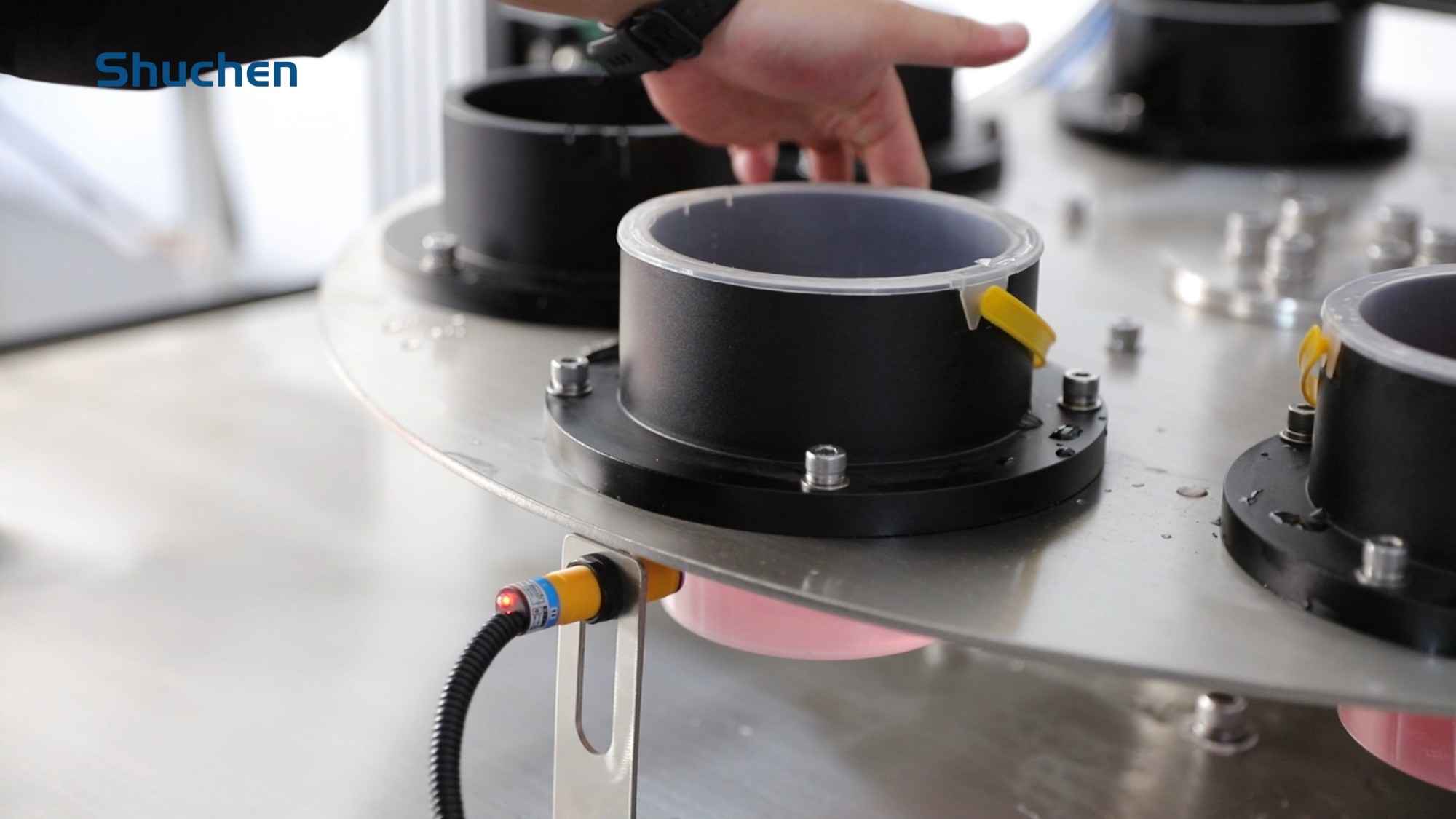

Conveyor belt transports the bucket to the mold → automatic filling →automatic unwinding of film →automatic sealing and cutting →automatic collection of waste film →automatic removal of the bucket to the conveyor belt

SCOPE OF APPLICATION

●Rotary-style bottle and drum filling and sealing machines are widely used in industries such as catering, food, health supplements, cosmetics, daily chemicals, and pharmaceuticals, for packaging products such as liquids with good or poor flowability, sauces, pastes, and thick soups.
●The machine frame is made of high-quality stainless steel and aluminum alloy.
●Electrical and pneumatic components are sourced from internationally renowned brands, ensuring stable performance.
●Functions: Automatic conveyor belt feeding of containers into the mold, filling, film unwinding, sealing, and output are all automated processes.

●Customized designs are available upon request.

TECHNICAL PARAMETERS

Machine type	JCL-900	JCL-1800
packaging speed	800-1800cups/hr	1600-3600cups/hr
Machine voltage	110V/220V/380V
Machine power	1.5KW	2KW
Working pressure	0.6Mpa
Machine sive	1200*1200mm	1200*1200mm
Machine weight	350Kg	400Kg
