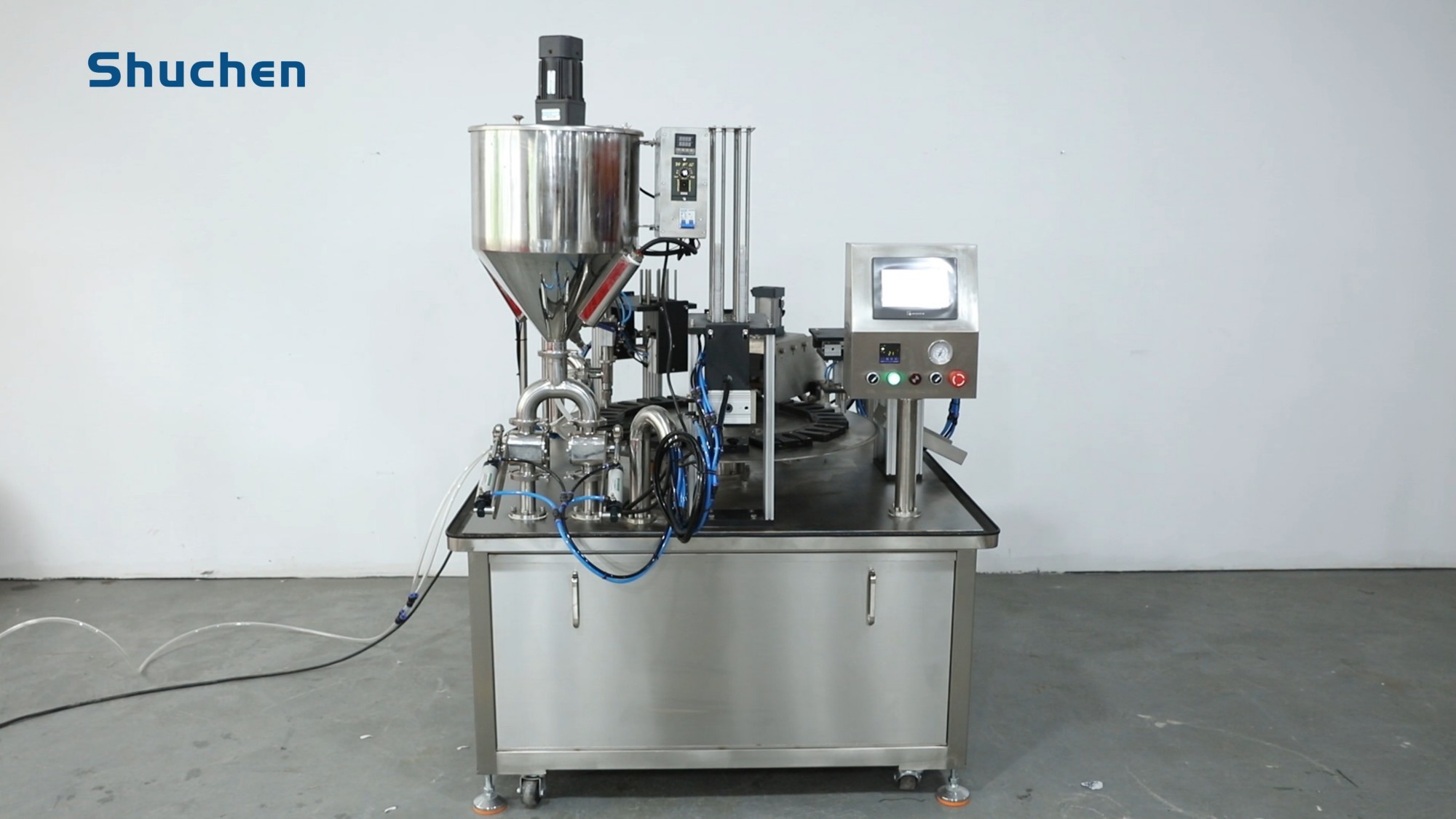

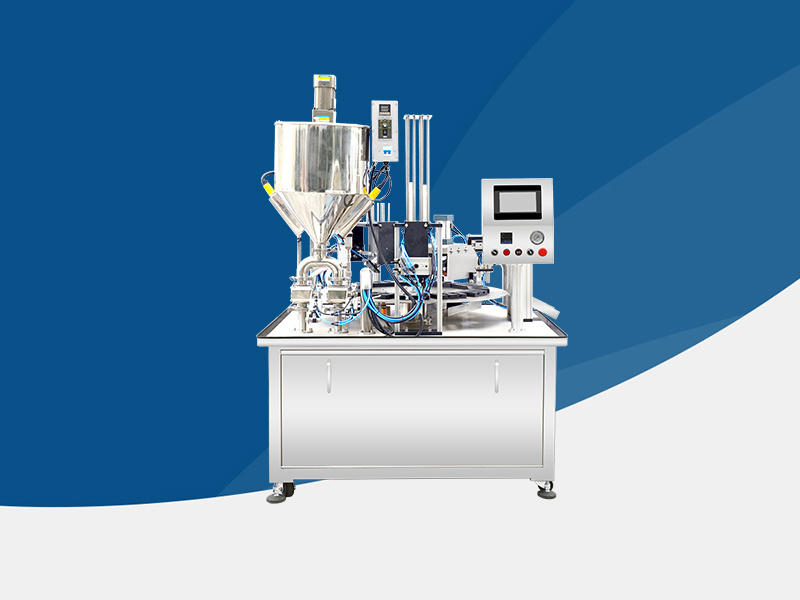

Ap Series Rotary Filling and Sealing Machine for Film (Bee Spoon)

Good heat dissipation performance, extending the lifespan of the motor

Keywords: Keywords:GL-160M1-16,Motors

Keywords:

Category:

Sealing Machinery

Custom shape

E-mail

Message

Details

APPLICATION

WORKFLOW

PROCESS FLOW

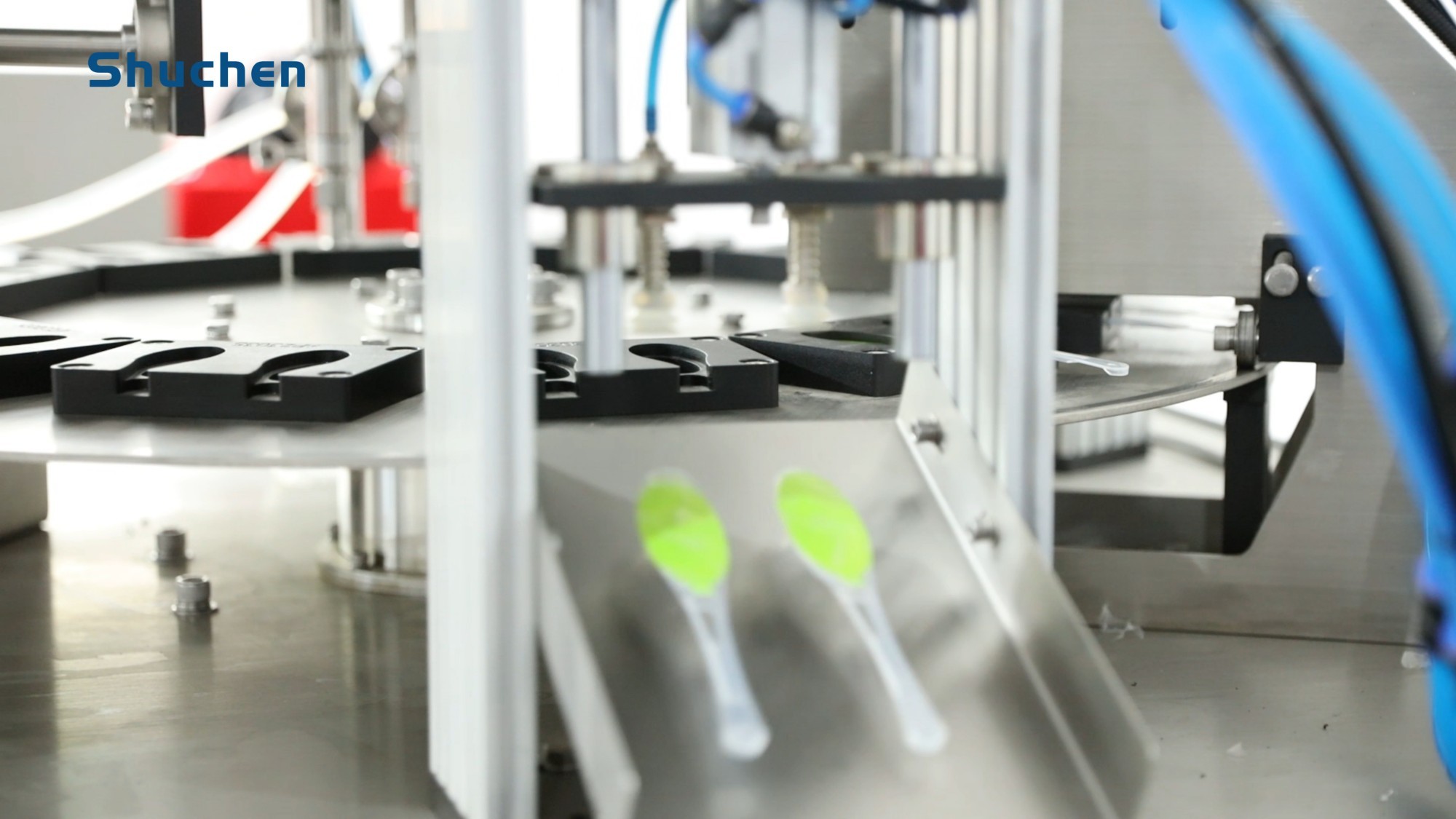

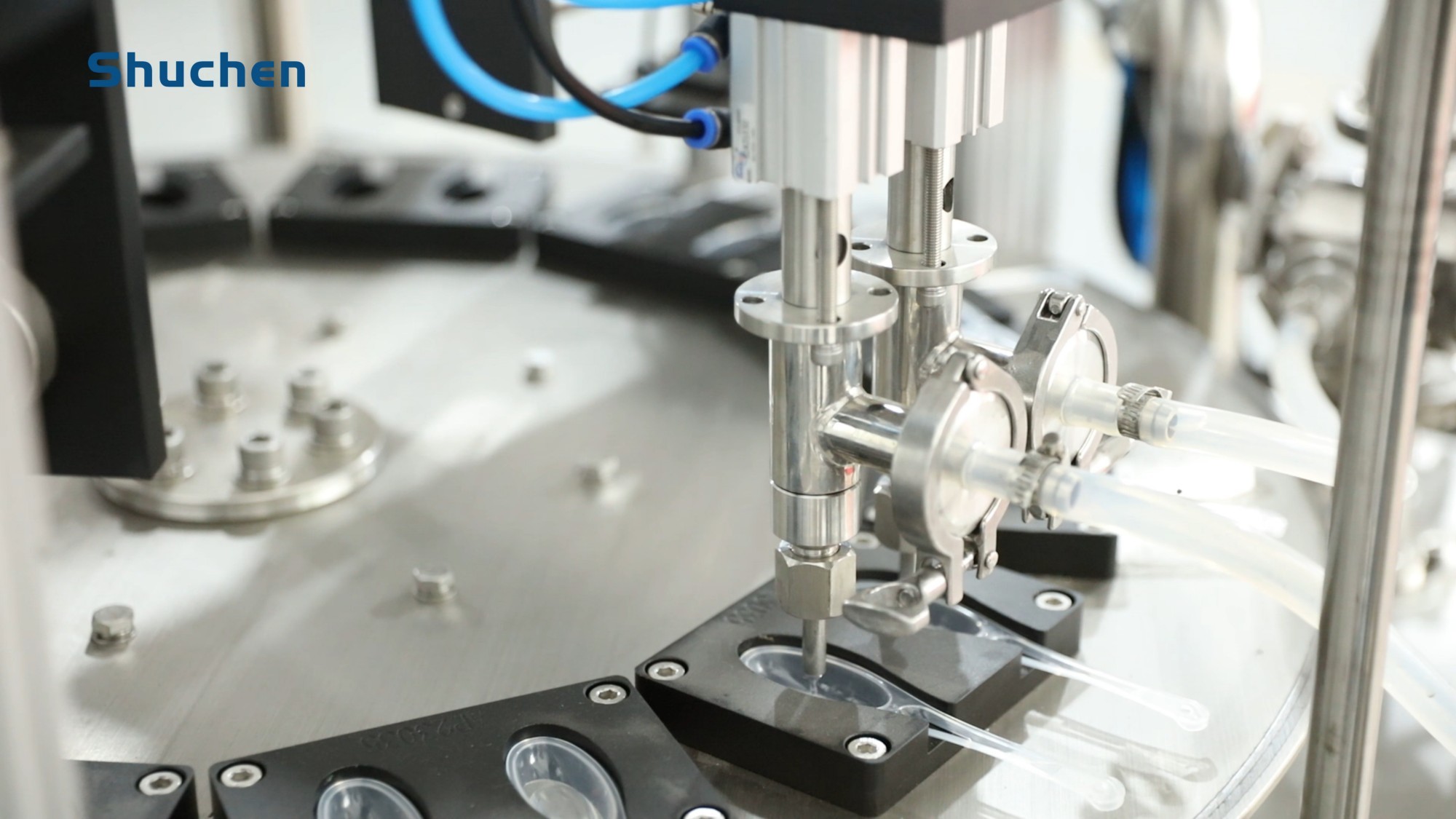

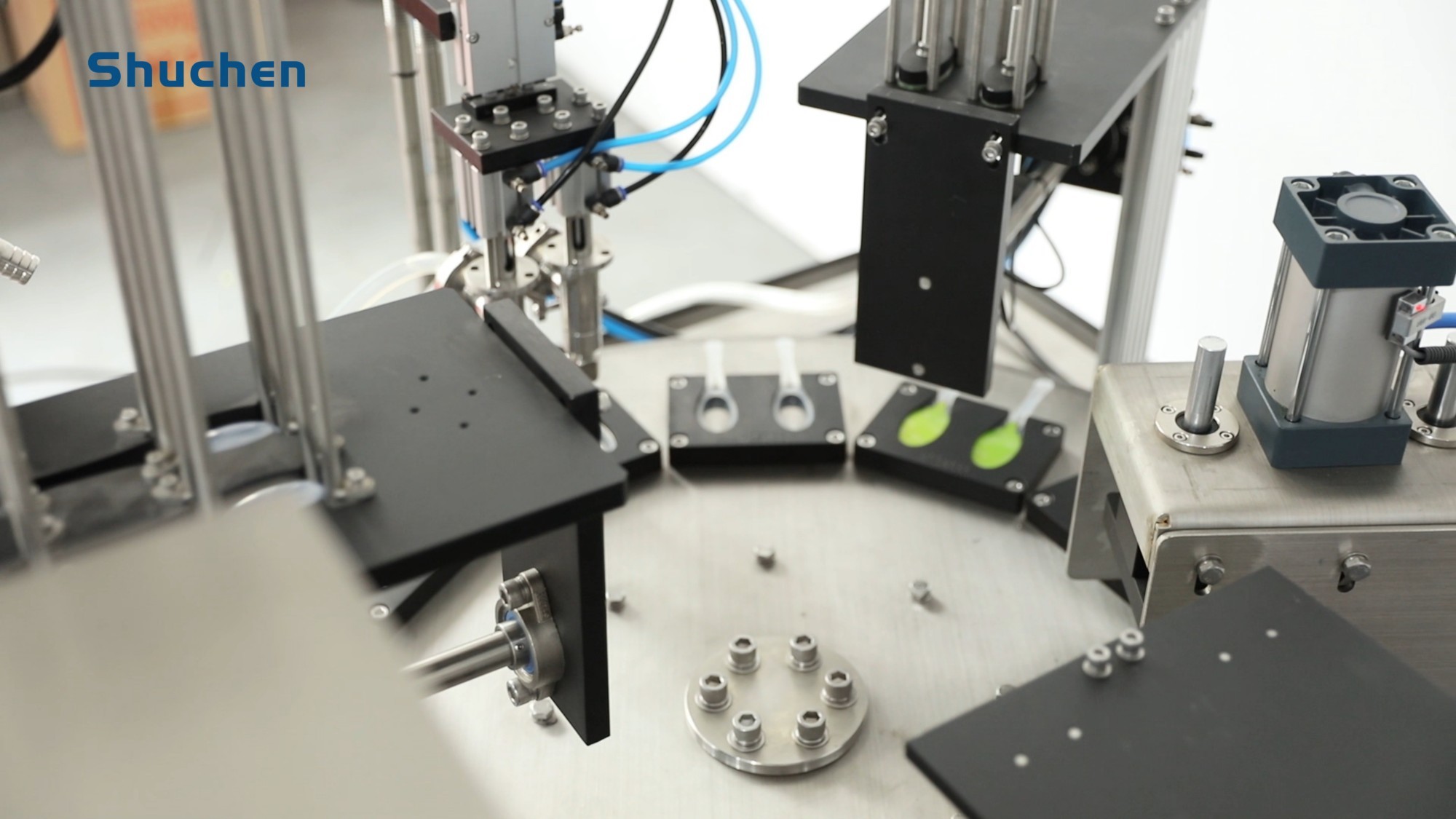

Automatic spooning into the mold → Automatic filling →Automatic film peeling →Automatic sealing and cutting →Automatic suction cup spoon removal

SCOPE OF APPLICATION

●The turntable-type soup filling and sealing machine is widely used in the catering, food, health supplement, cosmetics, daily chemical, and pharmaceutical industries, such as for packaging products like honey, pear syrup, and maltose.
●The machine frame is made of high-quality stainless steel and aluminum alloy.
●Electrical and pneumatic components are sourced from internationally renowned brands, ensuring stable performance.
●Functions: Automatic spooning, filling, film placement, sealing, and output are all fully automated.

●Customized designs are available upon request.

TECHNICAL PARAMETERS

Machine type	JCL-900	JCL-1800
packaging speed	800-1800cups/hr	1600-3600cups/hr
Machine voltage	110V/220V/380V
Machine power	1.5KW	2KW
Working pressure	0.6Mpa
Machine sive	1200*1200mm	1200*1200mm
Machine weight	350Kg	400Kg
