APPLICATION
WORKFLOW
PROCESS FLOW

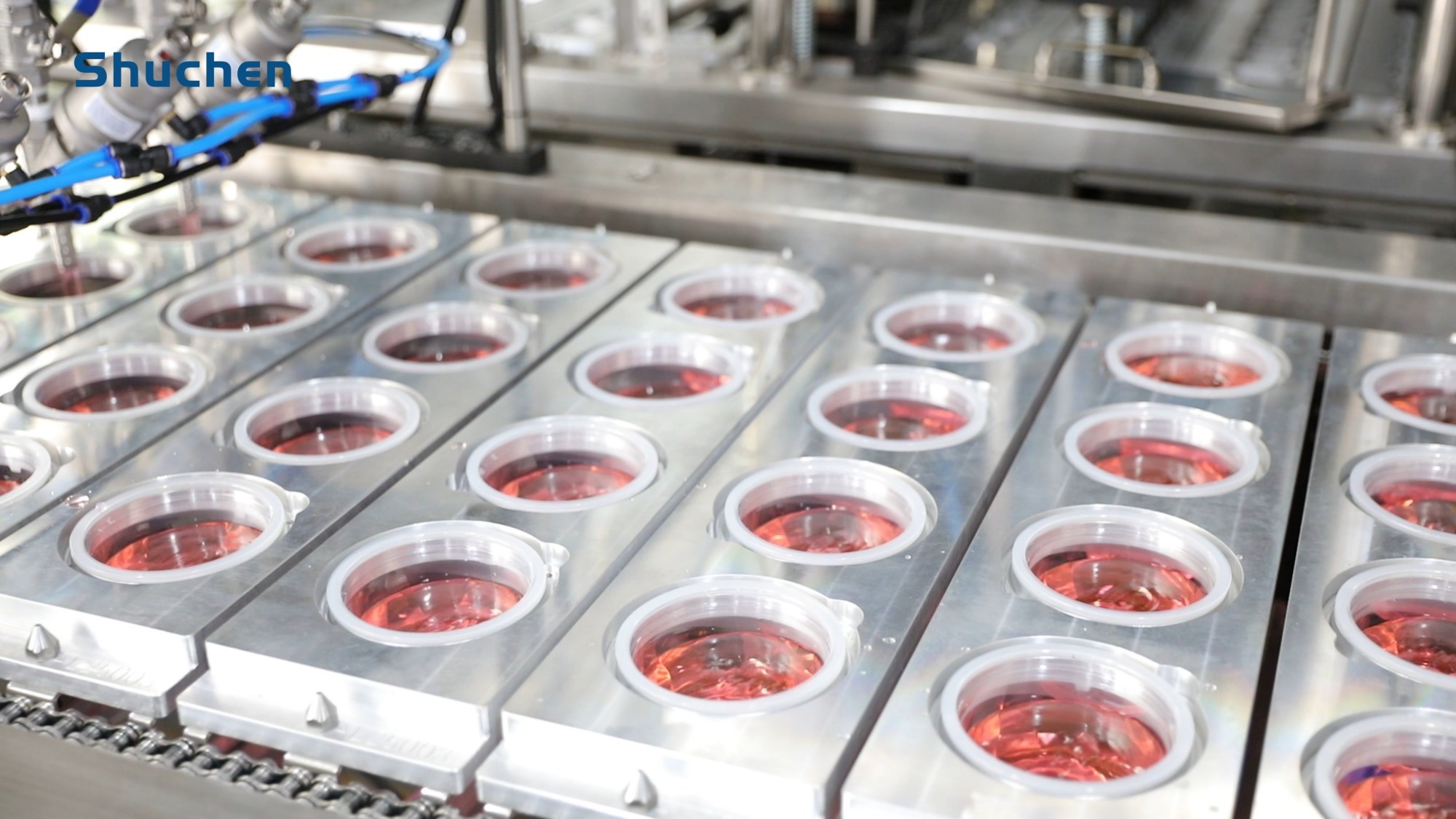

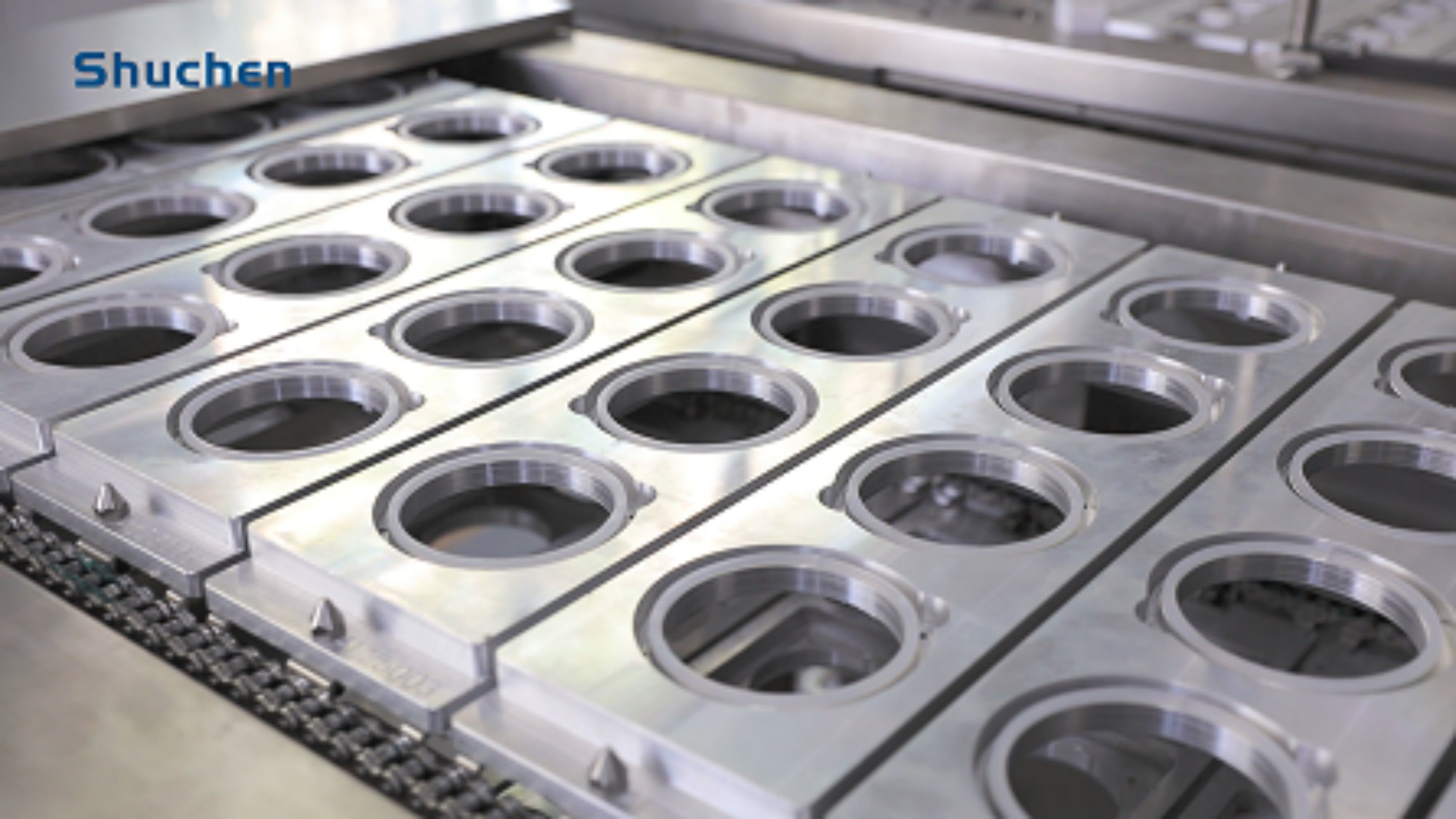

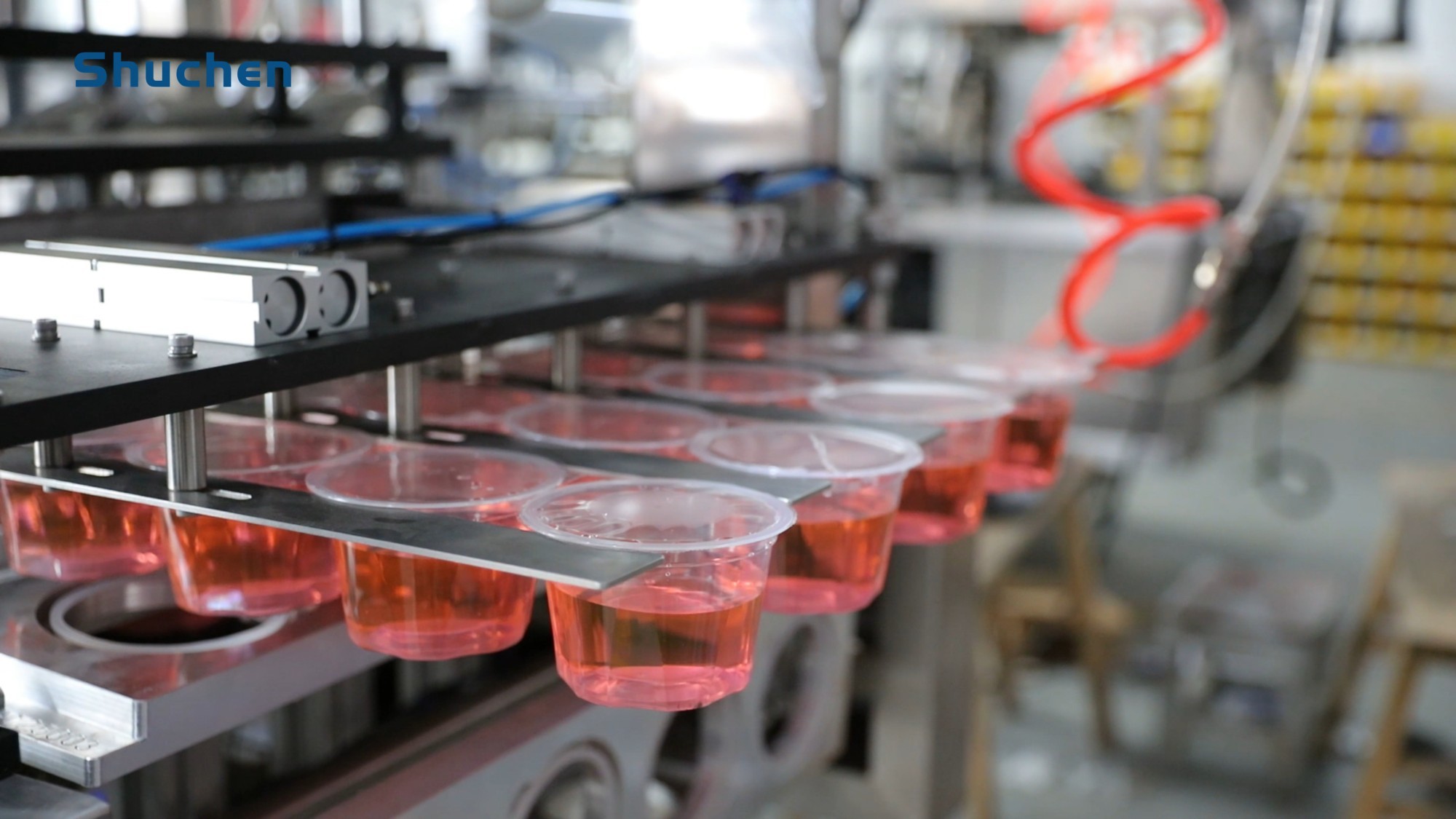

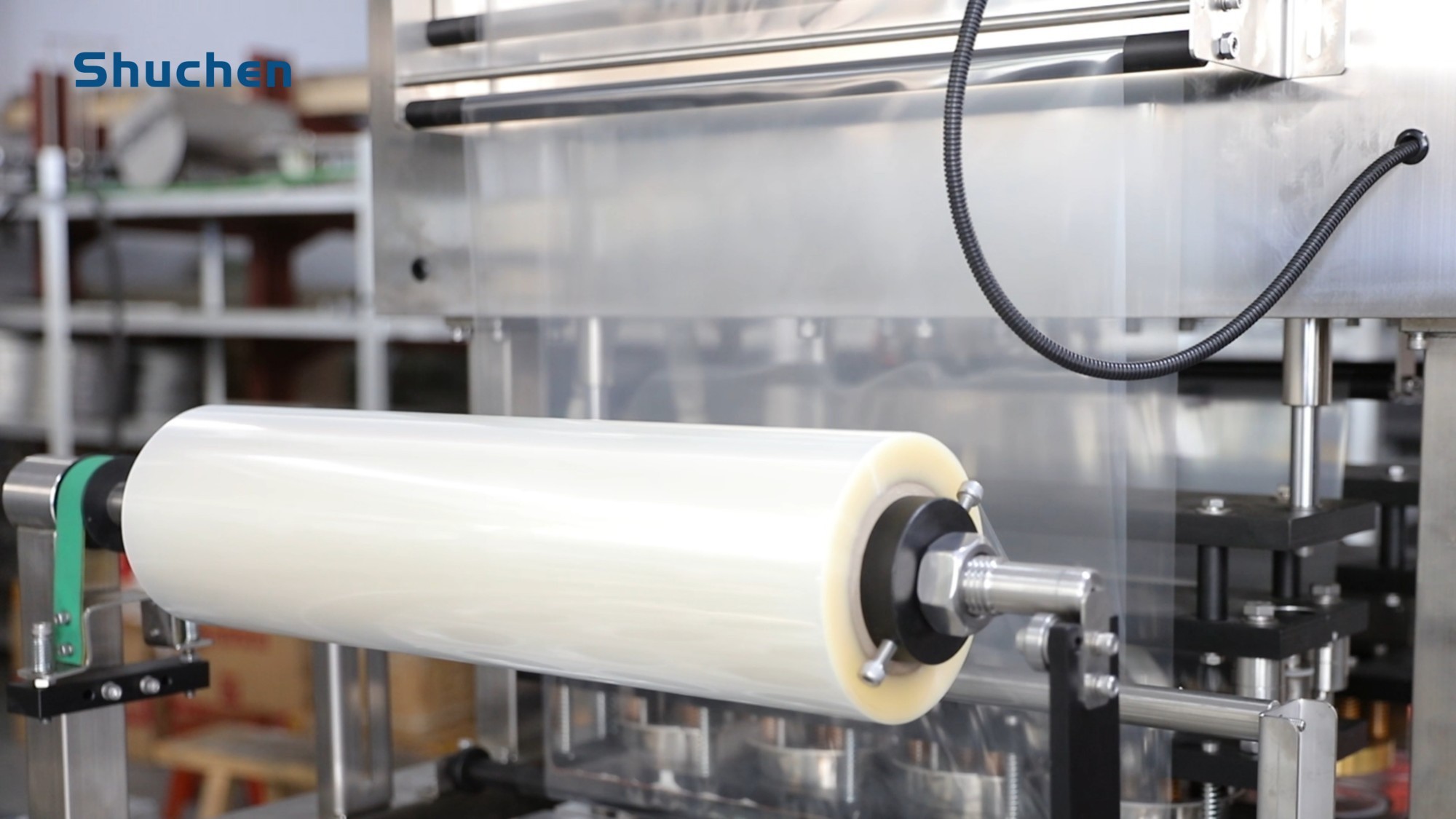

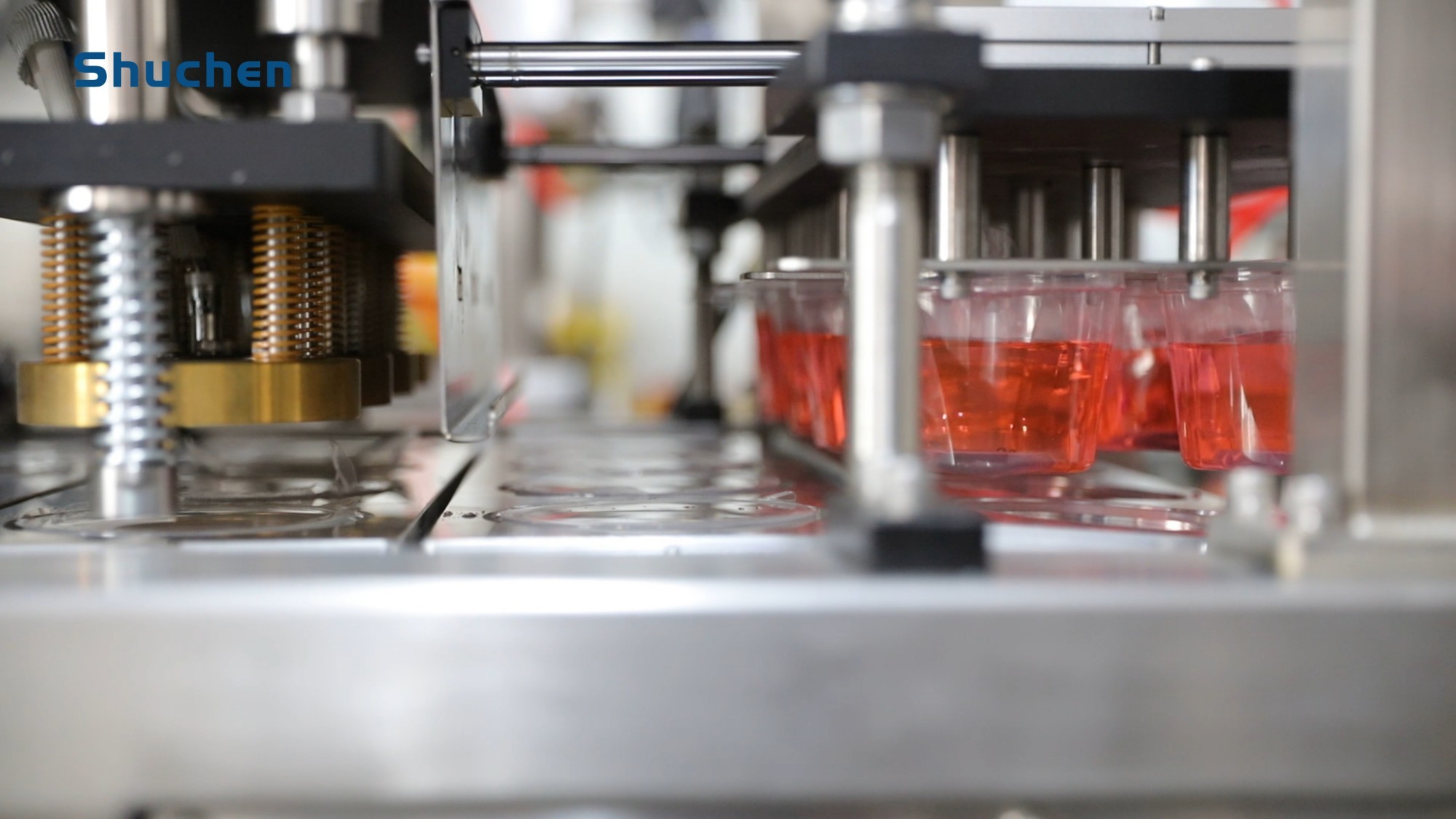

Conveyor belt drops box into mold → Automatic filling → Automatic film wrapping → Automatic coding → Automatic first sealing and cutting → Automatic second sealing and reinforcement → Automatic box pushing onto conveyor belt
SCOPE OF APPLICATION

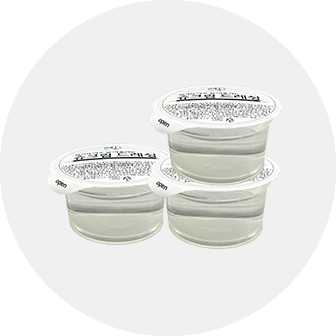

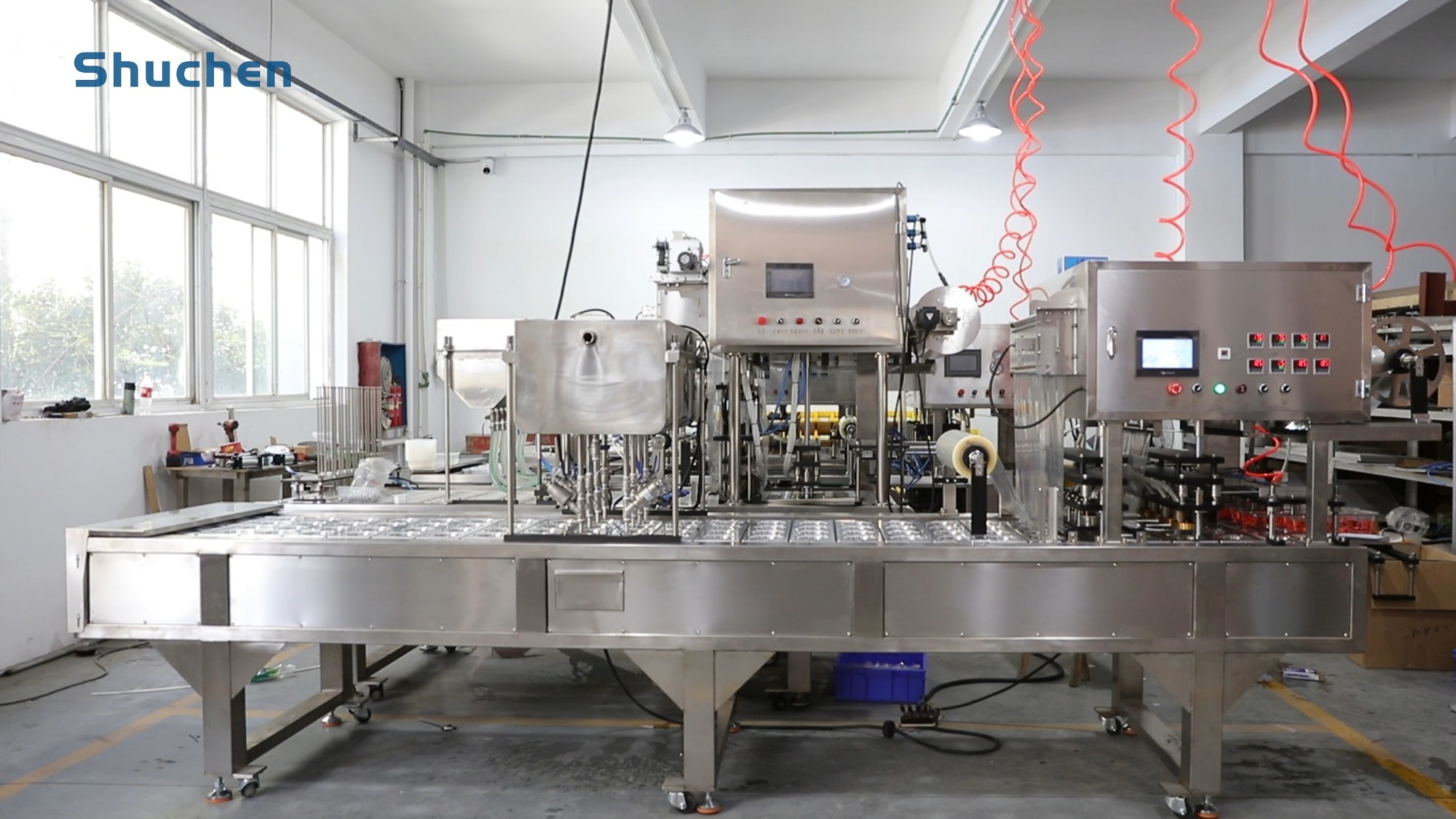

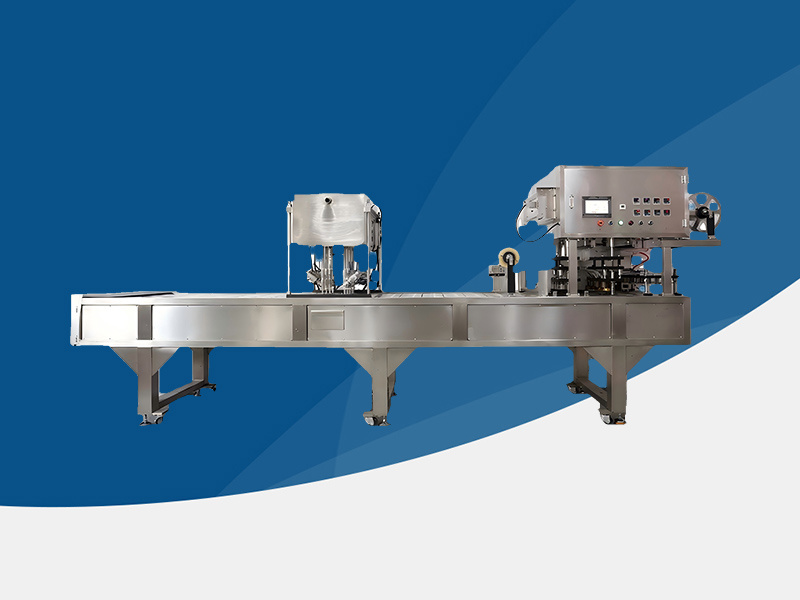

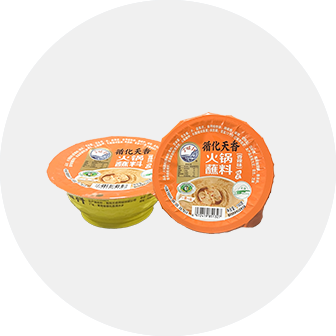

●The conveyor belt filling and sealing machine is widely used in the catering, food, health products, cosmetics, daily chemicals, and pharmaceutical industries, such as the packaging of products like preserved vegetable pork, pre-cooked meals, ready-to-eat foods, and vegetables. The machine frame is made of high-quality stainless steel and aluminum alloy.
●All electrical and pneumatic components are sourced from internationally renowned brands, ensuring stable performance.
●Functions: Automatic box feeding to the mold, filling, film wrapping, coding, sealing, and output are all fully automated processes.
●Customized designs are available upon request.
TECHNICAL PARAMETERS
Machine type | JCL32-2 | JCL32-4 | JCL32-6 | JCL32-8 |
packaging speed | 800-1800cups/hr | 1600-3600cups/hr | 2400-5400cups/hr | 3200-7200cups/hr |
Machine voltage | 110V/220V/380V | |||
Machine power | 4KW | 5KW | 6KW | 7KW |
Working pressure | 0.6-0.75Mpa | |||
Machine sive | 2000*650*1600mm | 2000*750*1600mm | 2000*850*1600mm | 2000*950*1600mm |
Machine weight | 400Kg | 500Kg | 600Kg | 700Kg |
