Details
APPLICATION
WORKFLOW
PROCESS FLOW
Suitable for granular materials used in food, pharmaceutical, and chemical industries, such as peanuts and nuts, cold medicine granules, table salt, sugar sticks, chicken essence, monosodium glutamate, white sugar, seeds, coffee beans, and various grains.

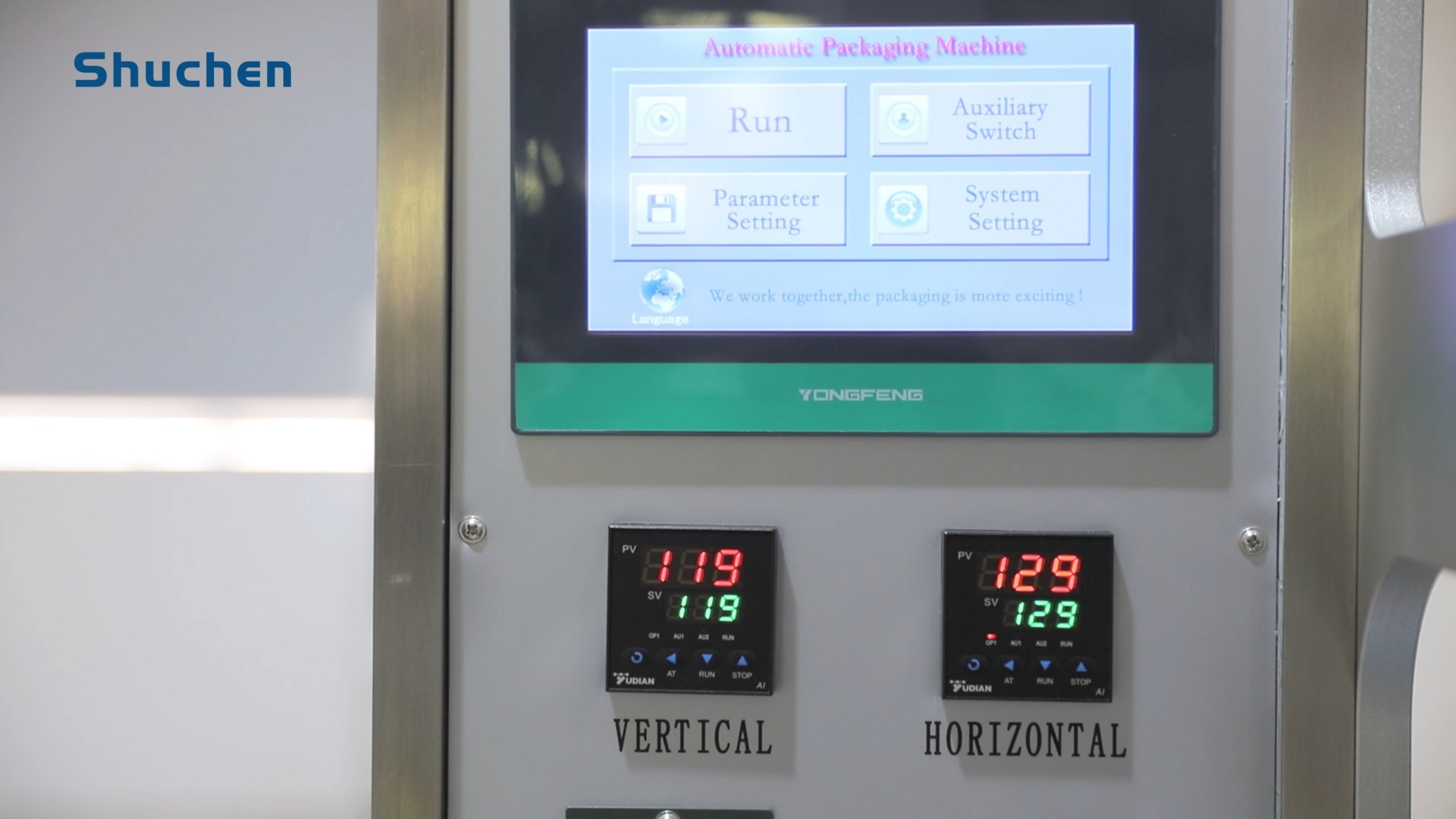

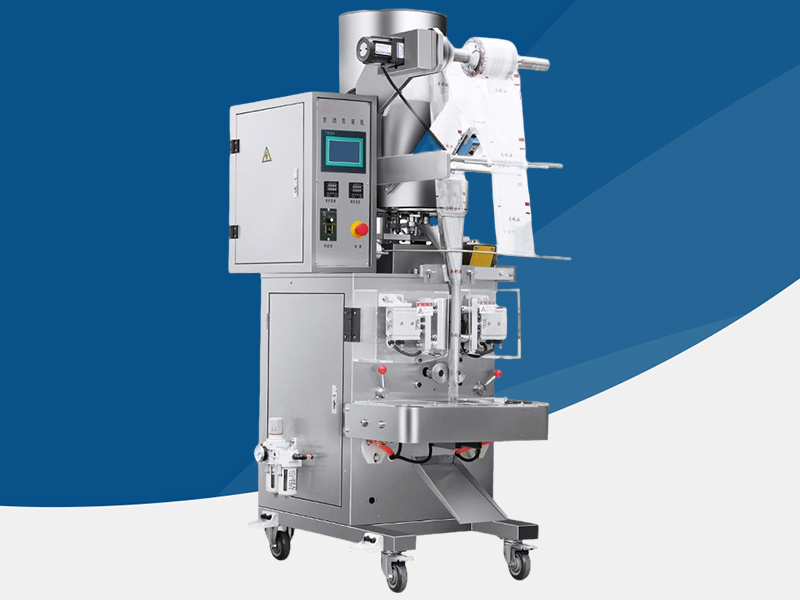

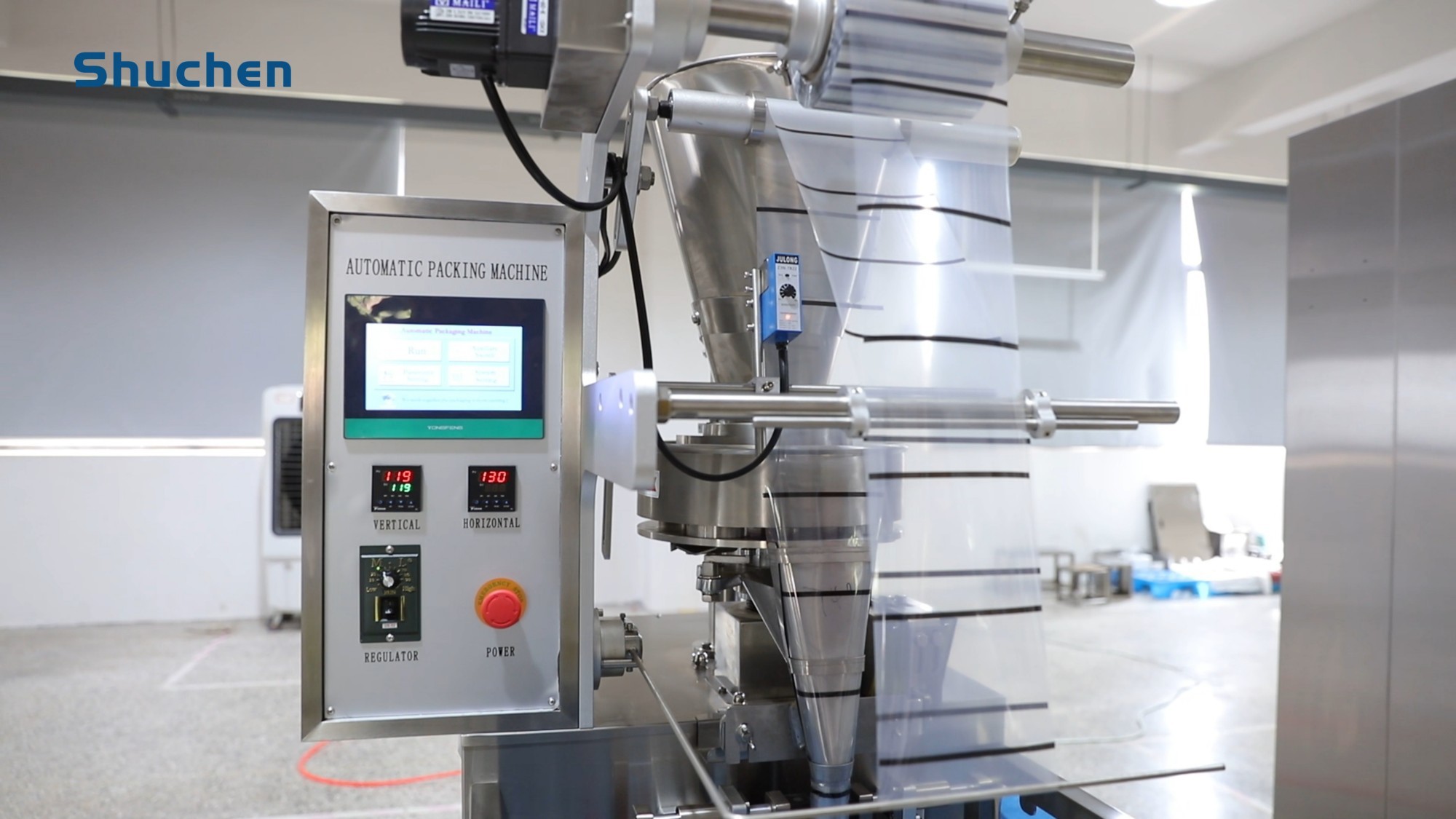

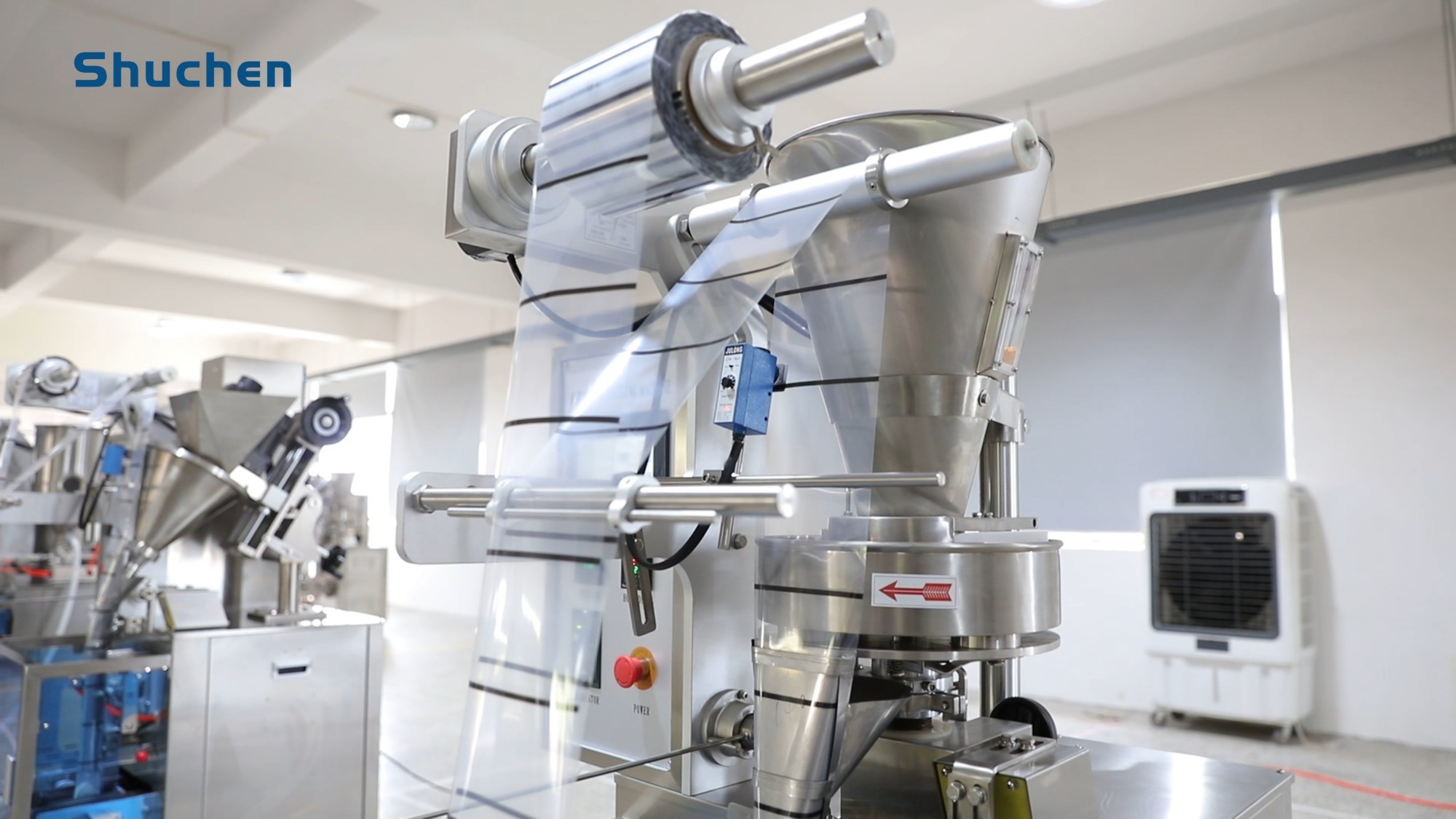

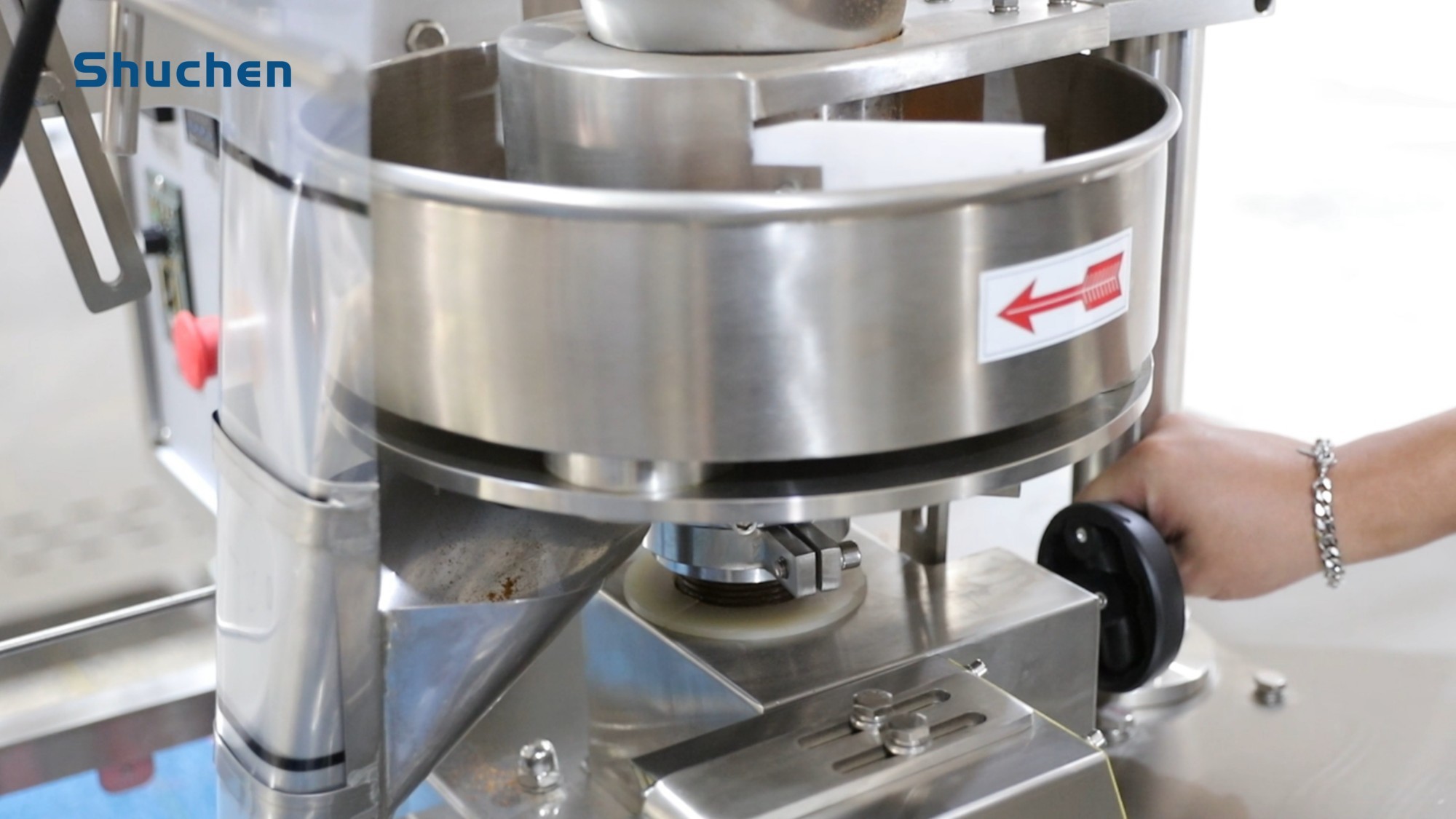

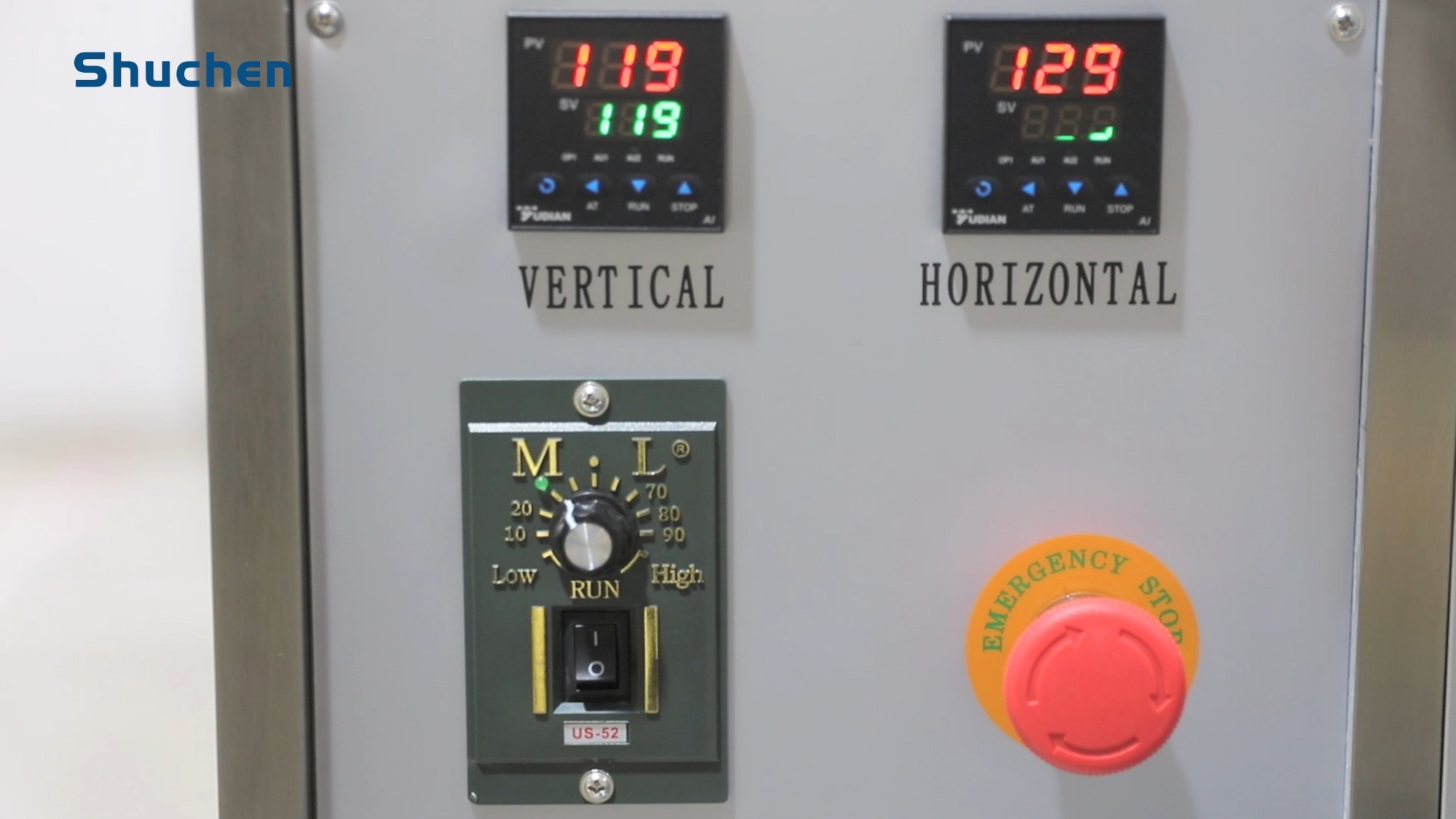

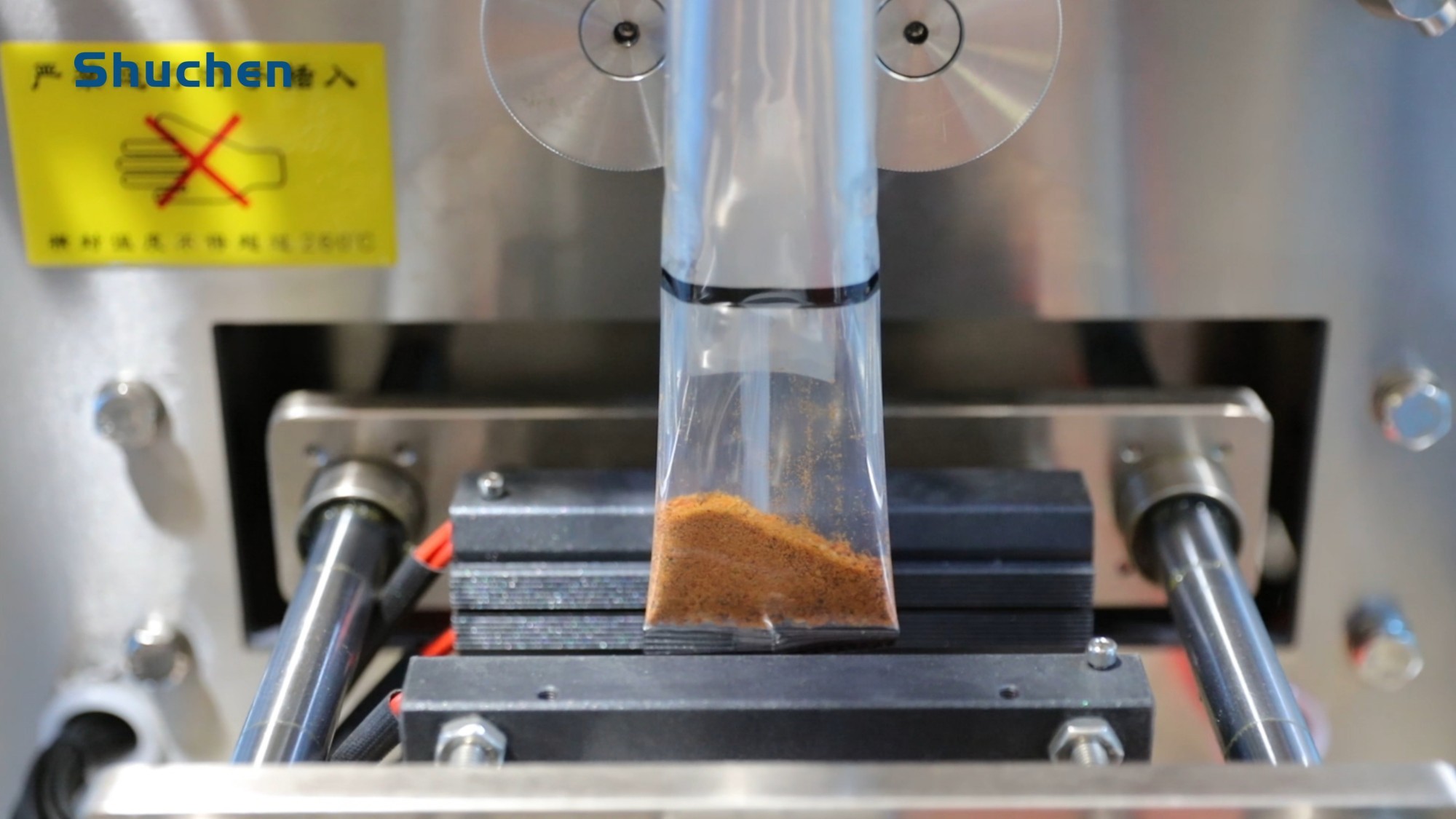

This machine is equipped with an advanced microcomputer controller, making operation simple and convenient. It is equipped with an internationally renowned brand control system, capable of automatically completing bag forming, metering, filling, gas injection, sealing, cutting, counting, and coding. It can also be customized with perforation holes according to customer requirements. The intelligent photoelectric control device ensures the integrity of the packaging bag pattern. The bag pulling mechanism is controlled by a stepper motor and color mark positioning, ensuring stable performance, convenient adjustment, and accurate detection. The machine offers two packaging forms for customers to choose from: back sealing and three-side sealing. The cutting blade can be selected from three types: flat blade, serrated blade, or dotted line blade. The metering method uses a volumetric cup made of stainless steel, with an adjustable capacity for easy regulation and accurate measurement. The advanced design ensures that the machine is suitable for various industries, with convenient adjustment, operation, and maintenance. It can be used in conjunction with various automatic metering equipment from both domestic and international sources.
TECHNICAL PARAMETERS
Model | SJII-K100 | SJIII-K300 | HLK460 | H100DK |
Bag length | 50-150mm | 50-270mm | 80-300mm | 45-170mm |
Bag width | 25-120mm | 70-190mm | 10-220mm | 25-140mm |
Packing film width | 50-260mm | 140-400mm | 220-460mm | 50-280mm |
Packagingcapacity | 5-100ML | 100-1000ML | 500-2000ML | 5-100ML |
Packagingspeed | 30-50bags/min | 20-40bags/min | 10-45bags/min | 25-90bags/min |
Power | 1.6KW/220V/50HZ | 2.4KW/220V/50HZ | 3.6KW/220V50HZ | 1.8KW/220V50HZ |
Gassource | 0.65Mpa | 0.65Mpa | 0.8Mpa | 0.8Mpa |
Air consumption | 100L/min | 100L/min | 150L/min | 200L/min |
Weight | 300kg | 480kg | 900Kg | 235kg |
